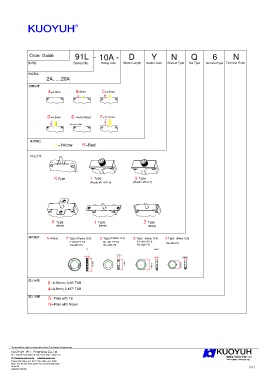

Order Guide 91L - 10A - D Y N Q 6 N
係列號 Series No. Rating Amp Button Length Button Color Bracket Type Nut Type Terminal Type Terminal Finish

電流額定
2A......20A

按鍵長度
A=0.0mm B=2mm C=4.5mm
2 4.5

D =8.5mm E =Auto-Reset F =11.5mm
11.5
8.5 (Auto-reset; no Button)

推桿顏色
Y =Yellow R =Red

固定方式

N Type 1 Type 3 Type
(Plastic M11XP1.0) (Plastic 3/8'-27T)

X Type I Type Z Type
(Metal) (Metal) (Metal)

螺母配件 N =Nane P Type (Plastic 18.5) Q Type (Plastic 14.5) B Type (Metal 14.0) S Type (Metal 12.0)
P1=M11*P1.0 Q1=M11*P1.0 B1=M11*P1.0 S3=3/8'-27t
P3=3/8'-27t Q3=3/8'-27t B3=3/8'-27t
3.2 3.0±0.2
2.8±0.1
3.0±0.2
T0
18.5±0.1 14.5±0.1
R
SS E E S T 14.0±0.2 12.0±0.2
E
PR
端子種類
6 =6.35mm; 0.25'' TAB
4 =4.8mm; 0.187'' TAB
端子電鍍
S =Plate with Tin
N =Plate with Nickel

* The specification subject to change without notice. The drawing is for reference only.
