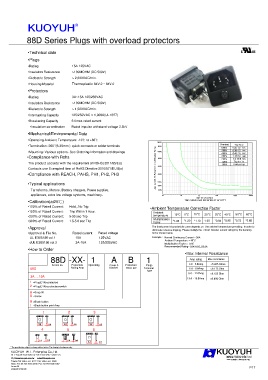

88D Series Plugs with overload protectors
•Technical data
•Plugs
•Rating 15A 125VAC
•Insulation Resistance >100MOHM (DC 500V)
•Dielectric Strength > 2,000VAC/min.
•Housing Material Thermoplastic 94V-2 ~ 94V-0
•Protectors
•Rating 3A~15A 125/250VAC
•Insulation Resistance >100MOHM (DC 500V)
•Dielectric Strength > 1,500VAC/min.
•Interrupting Capacity 125/250VAC x 1,000A(UL 1077)
•Breakering Capacity 6 times rated current
•Insulation co-ordination Rated impulse withstand voltage 2.5kV
•Mechanical/Environmental Data
•Operating Ambient Temperature: -10 to +60℃ ℃
1000%
Trip Time
•Termination: 250’’(6.35mm)quick connects or solder terminals 800% Overload 0.25-1.2 sec
600%
•Mounting: Various options. See Ordering Information and drawings 600% 500% 0.30-1.5 sec
0.45-2.5
sec
400%
sec
•Compliance with Rohs 500% 300% 1.10-5.0 sec
5.0-30.0
200%
The product accords with the requirement of ROHS( 2011/65/EU) 150% Trip in 1 hr
100%
Hold,no trip.
Contacts use Exempted item of RoHS Directive 2010/571/EU 8(a) Load Current AS Percent of Circuit Breaker Rating 400%
•Compliance with REACH, PAHS, PH1, PH2, PH3 300%
•Typical applications 200%
150%
Tarnsforms, Motors, Battery chargers, Power supplies, 100%
appliances, extra low voltage systems, machinery. 0.1 1.0 10 100 1000 10000
TIME IN SECONDS
•Calibration(at25 )℃ TRIP CURVES ARE SPECIFIED OF 25°C/77°F
•100% of Rated Current: Hold , No Trip •Ambient Temperature Correction Factor
•150% of Rated Current: Trip Within 1 Hour. Ambient
•200% of Rated Current: 5-30 sec Trip temperature -10°C 0°C 10°C 25°C 35°C 40°C 50°C 60°C
•300% of Rated Current: 1.5-5.0 sec Trip Multiplication *1.30 *1.20 *1.10 1.00 *0.94 *0.85 *0.73 *0.68
factor
•Approval The time/current characteristic curve depends on the ambient temperature prevailing. In order to
eliminate nuisance tripping. Please multiply the circuit breaker current ratings by the derating
•Approval & File No. Rated current Rated voltage factor shown below.
UL E305186 vol.1 15A 125VAC Example : Normal Continuous Current = 50A
Ambient Temperature = 45°C
cUL E305186 vol.2 3A-16A 125/250VAC Multiplication Factor = 0.85
Recommended Rating= 50A*0.85=58.8A
•How to Order
•Max.Internal Resistance
88D -XX- 1 A B 1 Amp rating Max resistance
Series no. Protectors Operating Cover & Protectors Plugs 3.0 - 5.0Amp <0.225 Ohms
88D Rating Amp bracket Button type Terminal 6.0 - 8.0Amp <0.175 Ohm
type
9.0 - 12.0Amp <0.125 Ohm
3A.....15A
13.0 - 16.0Amp <0.050 Ohm
1 =Plug(C14)+protectors
2 =Plug(C14)+protectors+switch
A =Snap IN
B =Screw
B =Black button
1 =Black button print Amp
1 2 3
4 5 6
* The specification subject to change without notice. The drawing is for reference only.
KUOYUH W.L. Enterprise Co.,Ltd.
No.17 Kejia 6th Road Douliu City YunLin Hsien 64057 Taiwan R.O.C
國郁企業股份有限公司
http//www.kuoyuh.com.tw sales@kuoyuh.com
64057 雲林縣斗六市科加六路17號
Taiwan Tel: 886 5 551 3222 Fax: 886 5 551 3030
China Tel: 86 769 8366 6388 Fax: 86 769 8366 6362
Issue:A0 P17
Date:2017.02.20
