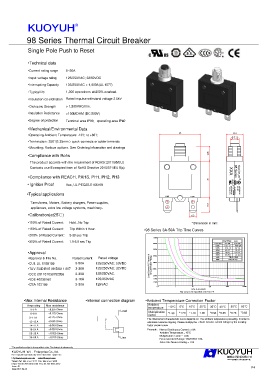

98 Series Thermal Circuit Breaker
Single Pole Push to Reset
•Technical data
•Current rating range 5~30A
•Input voltage rating 125/250VAC; 32/50VDC
•Interrupting Capacity 125/250VAC x 1,000A(UL 1077)
•Typical life 1,000 operations at 200% overload.
•Insulation co-ordination Rated impulse withstand voltage 2.5kV
•Dielectric Strength > 1,500VAC/min.
•Insulation Resistance >100MOHM (DC 500V)
•Degree of protection Terminal area IP00, operating area IP40
•Mechanical/Environmental Data
•Operating Ambient Temperature: -10 to +60℃ ℃
•Termination: 250’’(6.35mm)quick connects or solder terminals
•Mounting: Various options. See Ordering Information and drawings
•Compliance with Rohs
The product accords with the requirement of ROHS( 2011/65/EU)
Contacts use Exempted item of RoHS Directive 2010/571/EU 8(a) XXA 98 Series KUOYUH
•Compliance with REACH, PAHS, PH1, PH2, PH3 R
• Ignition Proof Yes, UL PEQZ2.E155159 C US Rohs Ignition Protected S SUD T . V . U . .
•Typical applications TC2/OL0/C1 125/250VAC Suppl.Prot. 32VDC 125/250VAC
LINE LOAD
Tarnsforms, Motors, Battery chargers, Power supplies,
appliances, extra low voltage systems, machinery.
•Calibration(at25 )℃
•100% of Rated Current: Hold , No Trip * Dimension in mm:
•150% of Rated Current: Trip Within 1 Hour. •98 Series 3A-50A Trip Time Curves
•200% of Rated Current: 5-30 sec Trip
1000%
•300% of Rated Current: 1.5-5.0 sec Trip 3Amp-50Amp (sec)
800% OverLoad 3A~30A 31A~50A
600% 0.45~1.2 0.68~2.4
500% 0.58~1.8 0.8~3.2
600% 400% 0.8~3.7 1.8~4.5
•Approval 300% 1.8-5.5 3.2~7.7
5.0-28.0
7.8~40.0
200%
Trip in 1 Hour
•Approval & File No. Rated current Rated voltage 500% 150% Hold, No Trip
100%
•CUL UL E155159 3-50A 125/250VAC; 50VDC Load Current AS Percent of Circuit Breaker Rating 400%
•TUV SUD B15 09 58611 007 3-30A 125/250VAC; 32VDC 300%
•CCC 201101030752058 3-30A 125/250VAC. 200%
•VDE 40036160 3-16A 125/250VAC 150%
100%
•CSA 102199 3-30A 125VAC
0.1 1 10 100 1000 10000
Time in Seconds
Trip Curves Are Specified of 25°C/77°F
•Max.Internal Resistance •Internal connection diagram •Ambient Temperature Correction Factor
Amp rating Max resistance Ambient -10°C 0°C 10°C 25°C 35°C 40°C 50°C 60°C
3~5 A <0.225 Ohms Load temperature
6~8 A <0.175 Ohms Multiplication *1.30 *1.20 *1.10 1.00 *0.94 *0.85 *0.73 *0.68
factor
9~11 A <0.125 Ohms
The time/current characteristic curve depends on the ambient temperature prevailing. In order to
12~13 A <0.050 Ohms eliminate nuisance tripping. Please multiply the circuit breaker current ratings by the derating
14~17 A <0.040 Ohms factor shown below.
18~24 A <0.030 Ohms Example : Normal Continuous Current = 10A
25~35 A < 0.020 Ohms Ambient Temperature = 45°C
Multiplication Factor = 0.85
36~50 A < 0.010 Ohms Line Recommended Rating= 10A/0.85=11.8A
Select the Nearest Rating = 12A
* The specification subject to change without notice. The drawing is for reference only.
