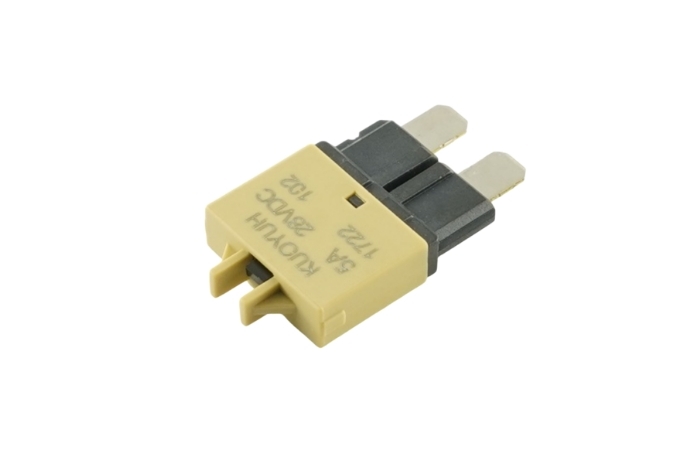

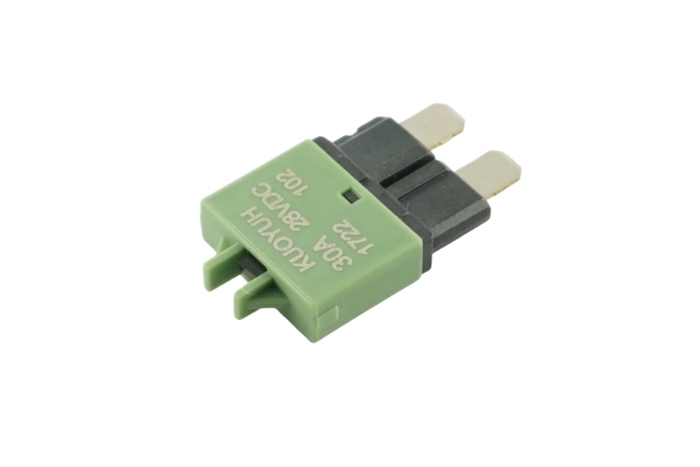

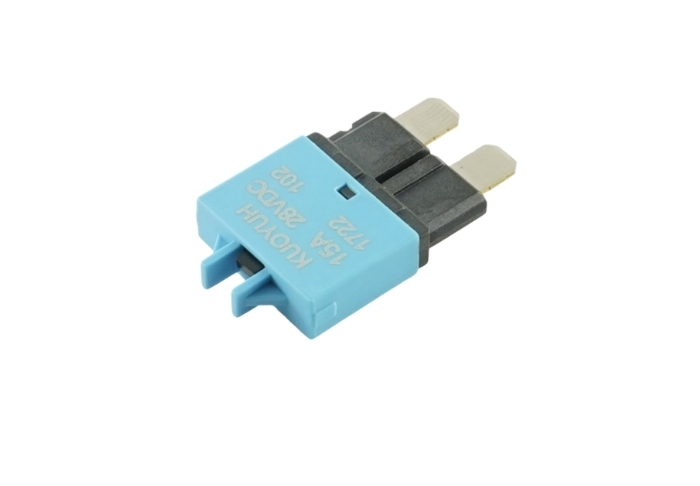

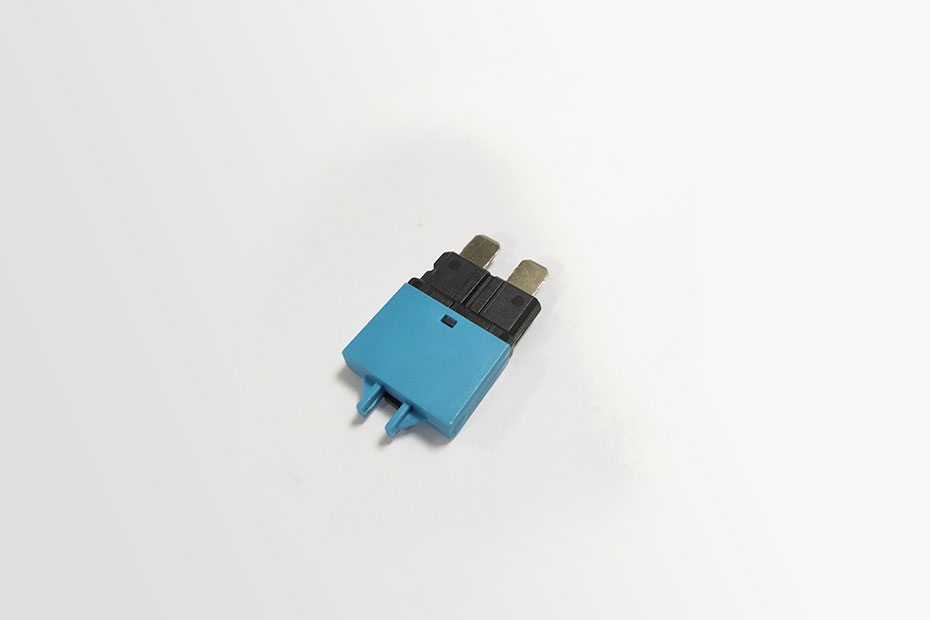

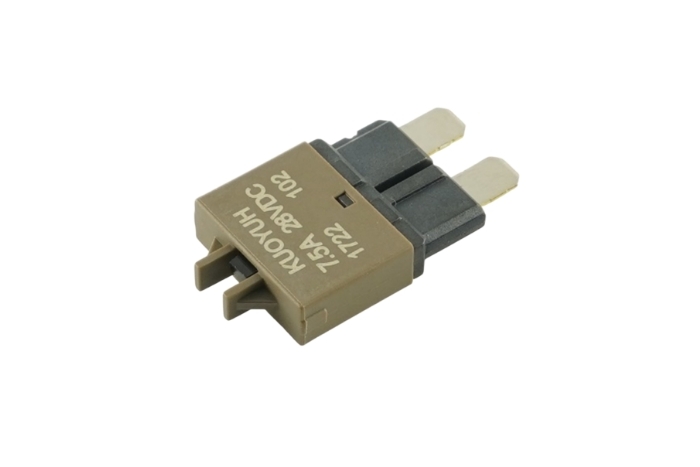

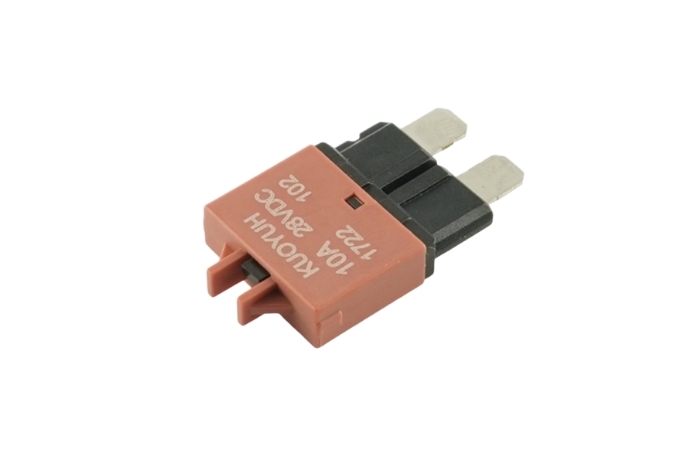

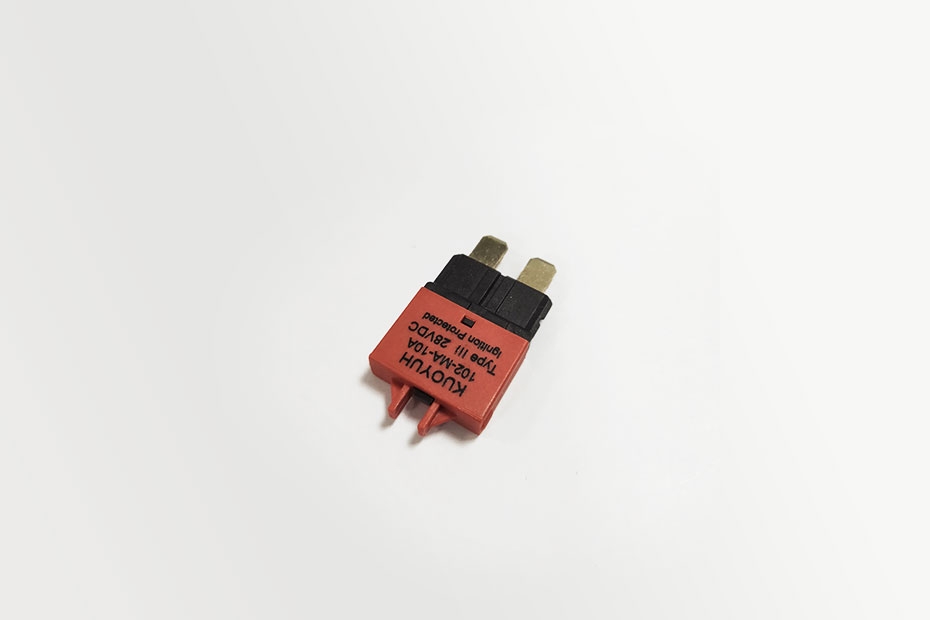

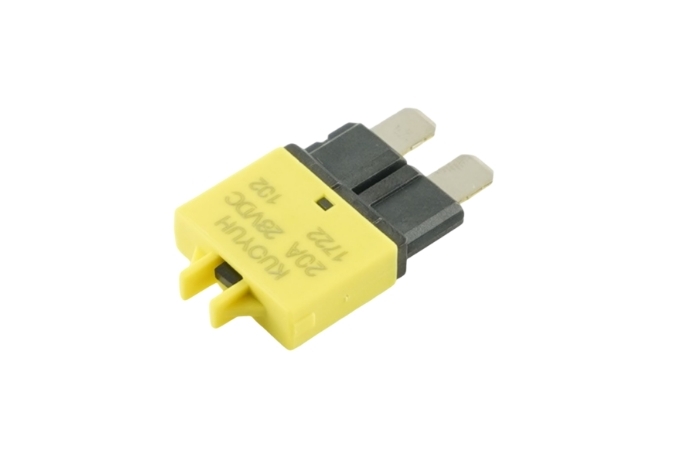

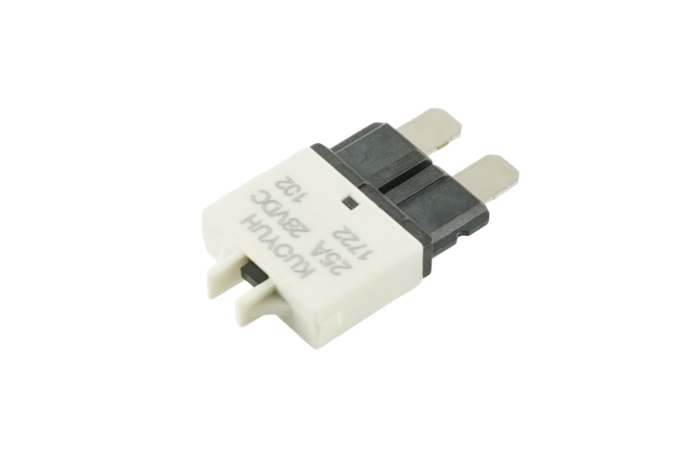

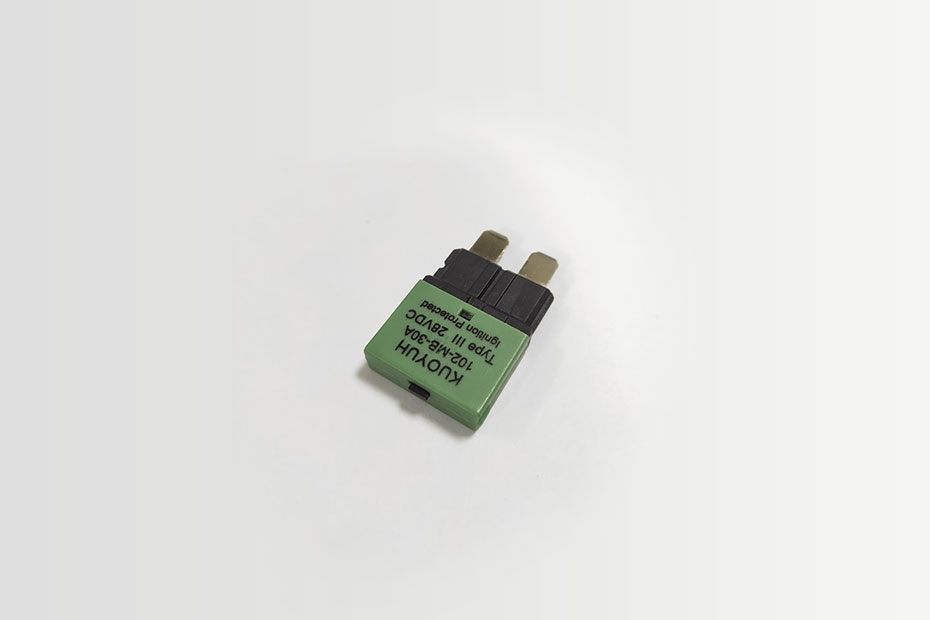

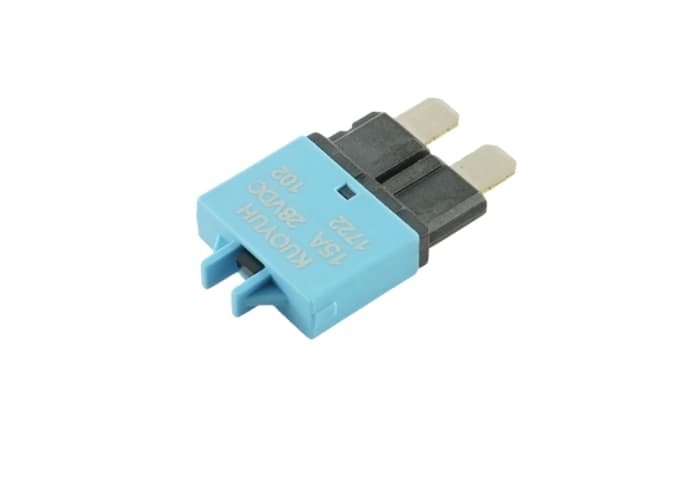

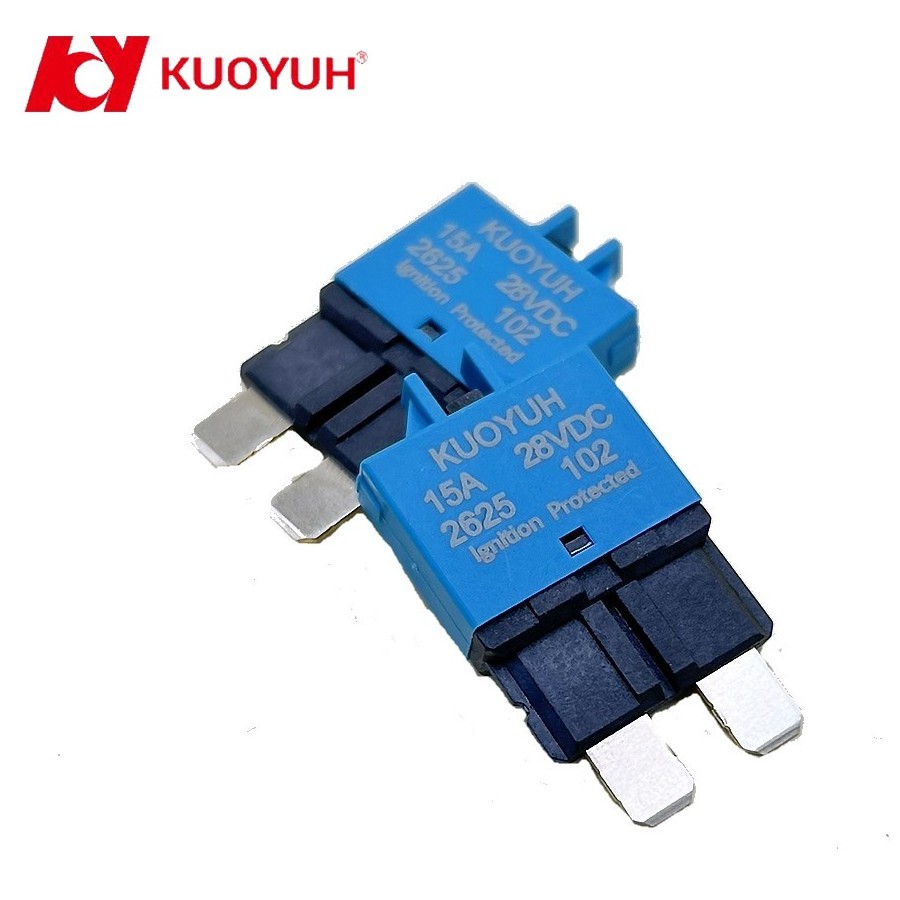

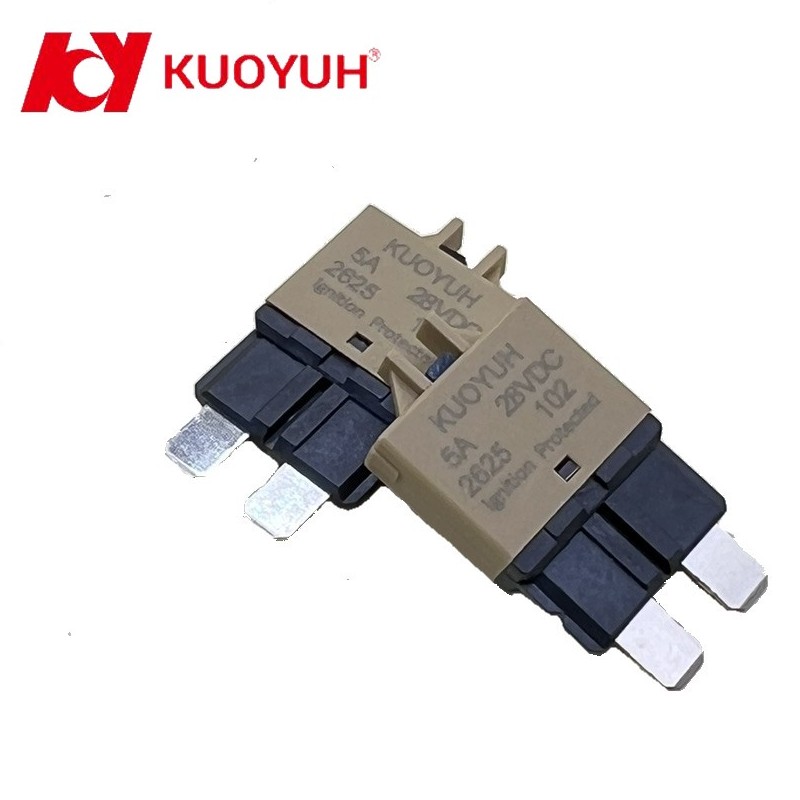

Product Name : 102 Series ATC/ATO Blade Fuse Circuit Breaker
Product Description

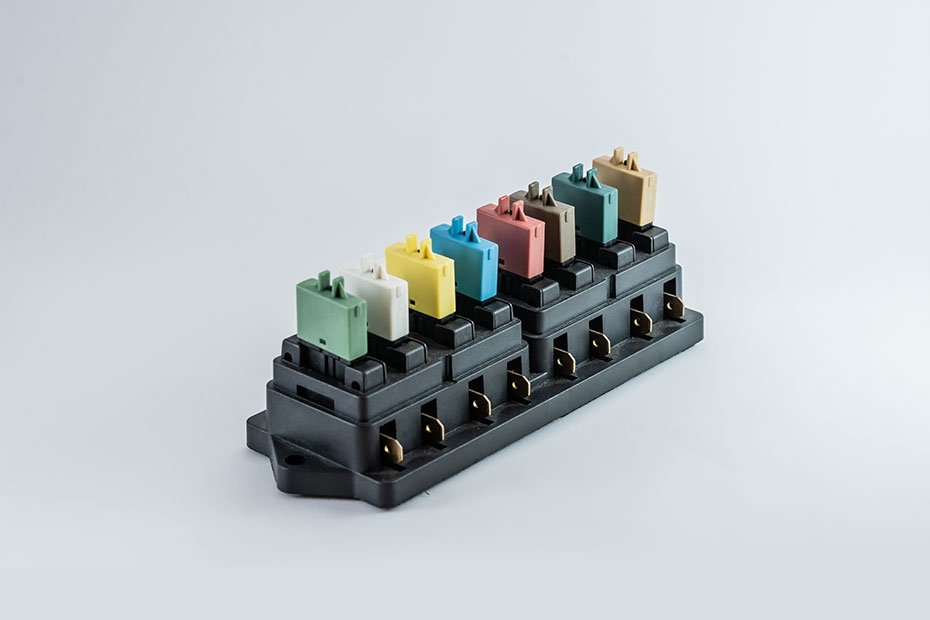

KUOYUH presents the 102 Series push ATC/ATO Blade fuse circuit breakers for automotive electrical system protection. These single-pole thermal circuit protectors are designed to seamlessly integrate into ATC or ATO type fuse blocks, making them a versatile choice for marine, RV, ATV,UTV protection. The 102 Series offers a range of 5A to 30A, ensuring compatibility with various applications.

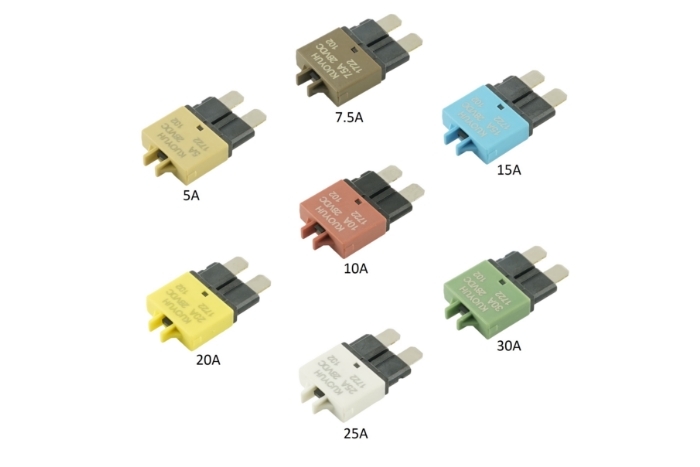

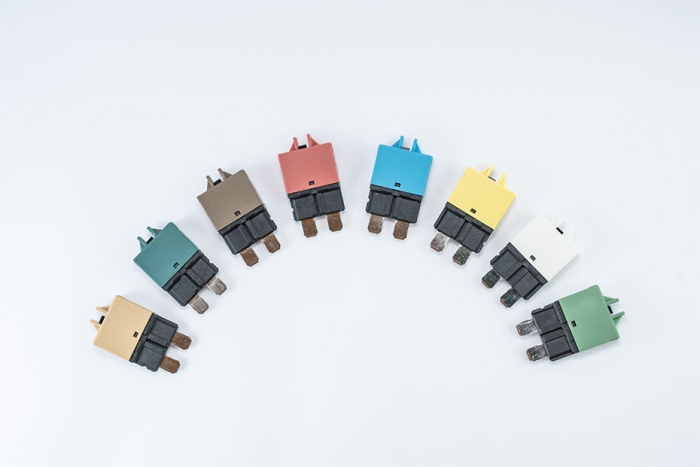

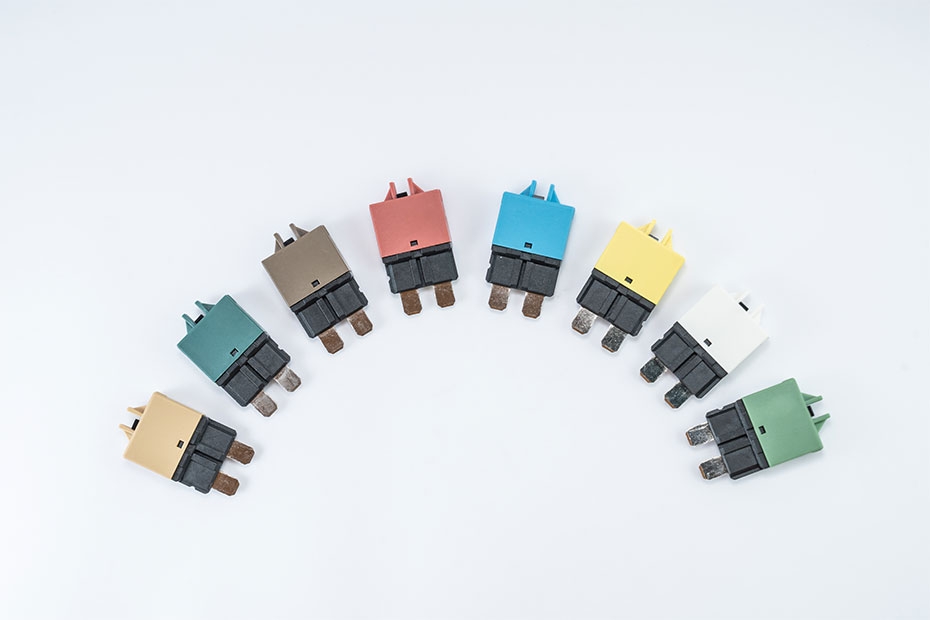

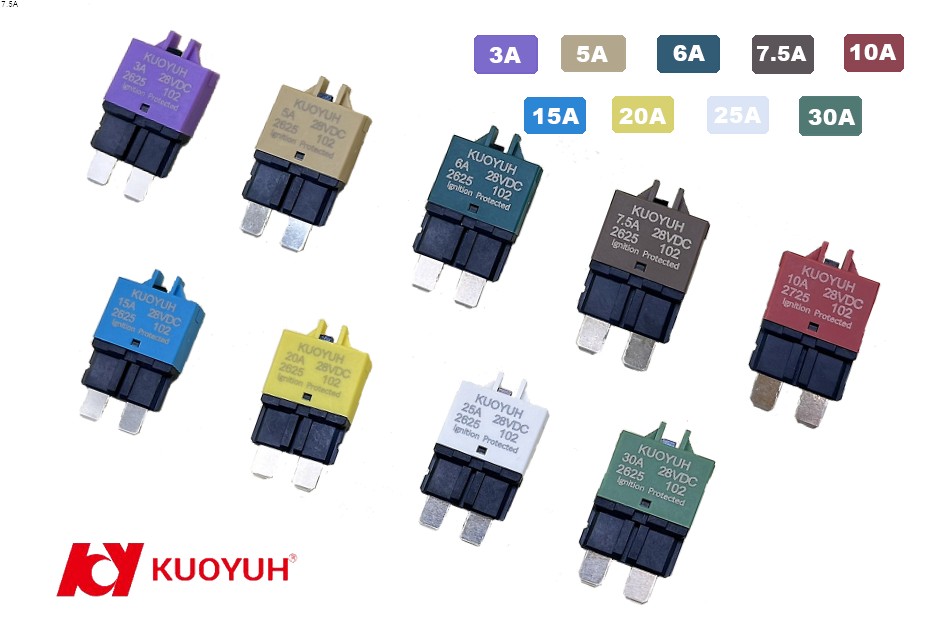

Crafted from thermosetting plastic with a color-coded plastic cover for easy amperage identification, these circuit breakers combine the familiar form factor of ATC and ATO blade fuses with the added benefit of manual reset functionality. In the event of an overload, the manual reset button on the top of the blade fuse circuit breaker pops up, indicating activation. A simple push down resets the circuit without the need to replace fuses, complying with ABYC circuit protection requirements.

Certified by Ignition protection and compliant with RoHS environmental standards, KUOYUH's 102 ATC blade fuse circuit breakers offer a reliable and eco-friendly alternative to traditional fuses. Choose the 102 Series ATC/ATO blade fuse circuit breaker for a durable and convenient upgrade to your vehicle's electrical system protection.

Product Introduction

Key Features

  1. Following SAE J553 Standard and SAE J1171 Standard.
  2. Trip Free Cycling.
  3. Use UL-Rated 94V-0 Thermosetting plastic body.
  4. Ignition Protected, following SAE J1171; UL 1500 Standard.


  1. Current rating range: 5A--30A
  2. Input voltage rating: 32VDC
  3. Interrupting capacity: 2,000A / 28VDC

Testing Performed

  1. Current test: 200% current full-inspect test
  2. Dielectric Strength Test: 1500VAC/min

Safety Certification

  • Electrical appliances certification:SAE
  • Environmental standards: RoHS

Add-on Service

Regarding laser printing, we provide OEM service. (not yet)

As for packages, we provide customers with customized services.
