103 Series Auto-Reset-Circuit Breaker

103 Series auto reset circuit breakers

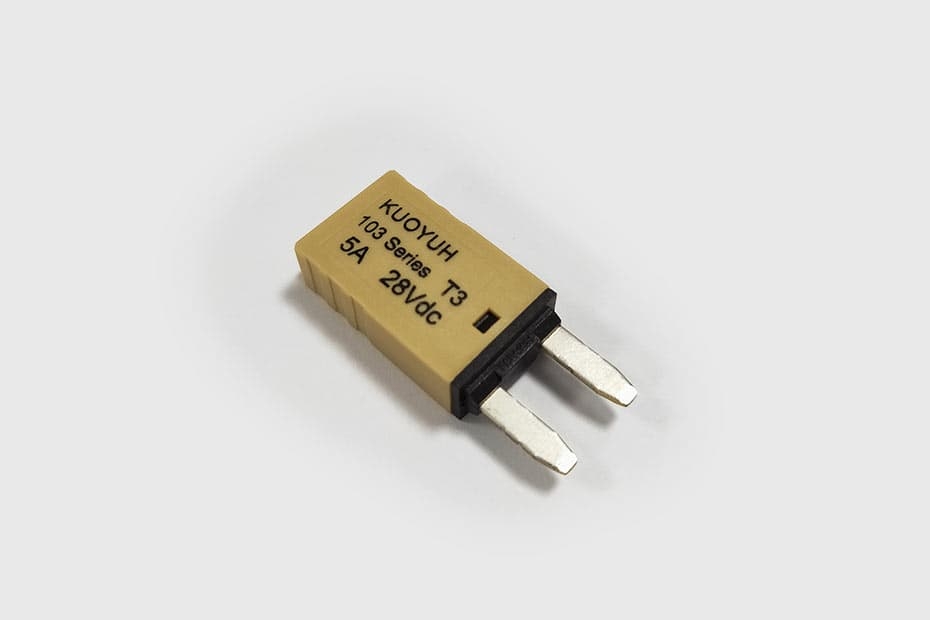

103 series| 5 amp auto reset circuit breaker

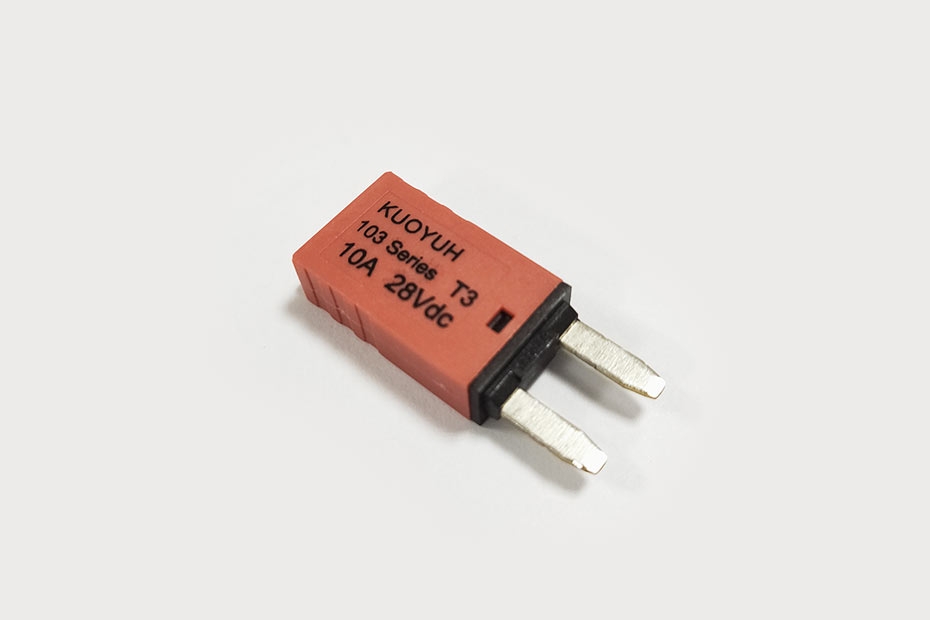

(103 series) 10 amp automotive circuit breaker

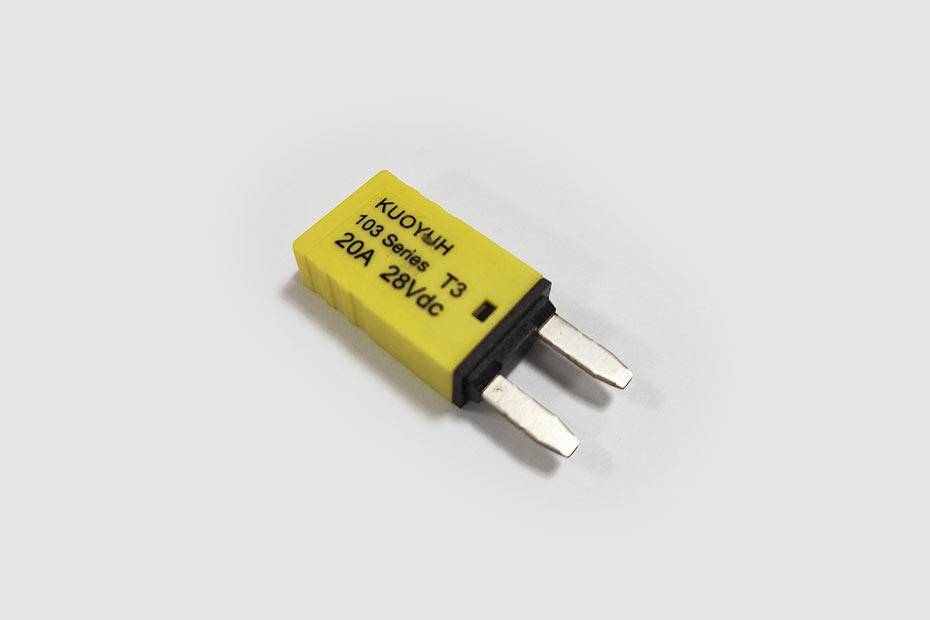

103 series - 20 amp automatic reset circuit breaker

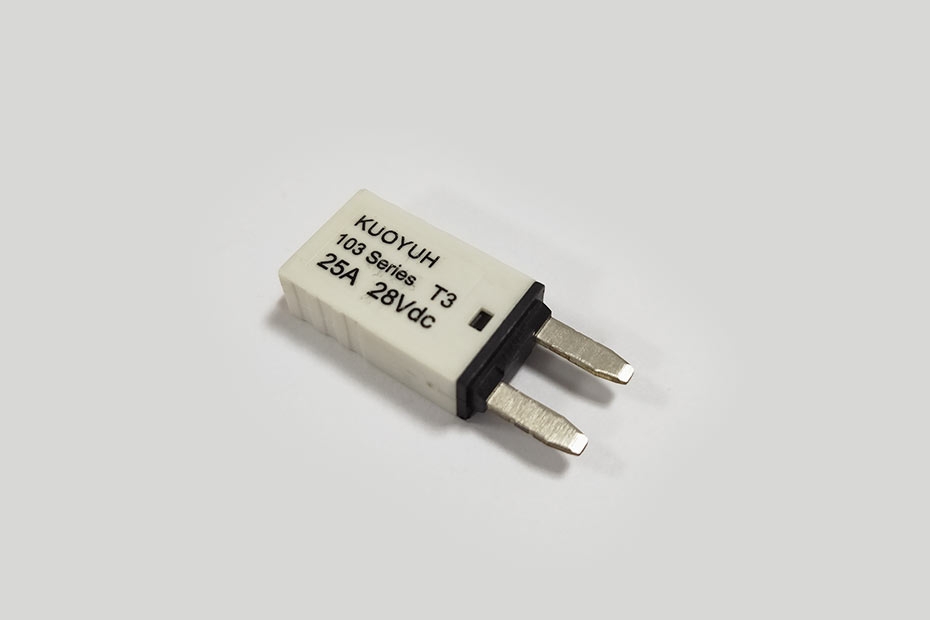

103 series | 25 amp auto reset circuit breaker
Product Name : 103 Series Auto-Reset-Circuit Breaker
Product Description

103 Series Automatic-reset circuit breaker is a unipolar and free cycle trip protection device. Commonly known asMini ATM Blade circuit breaker.

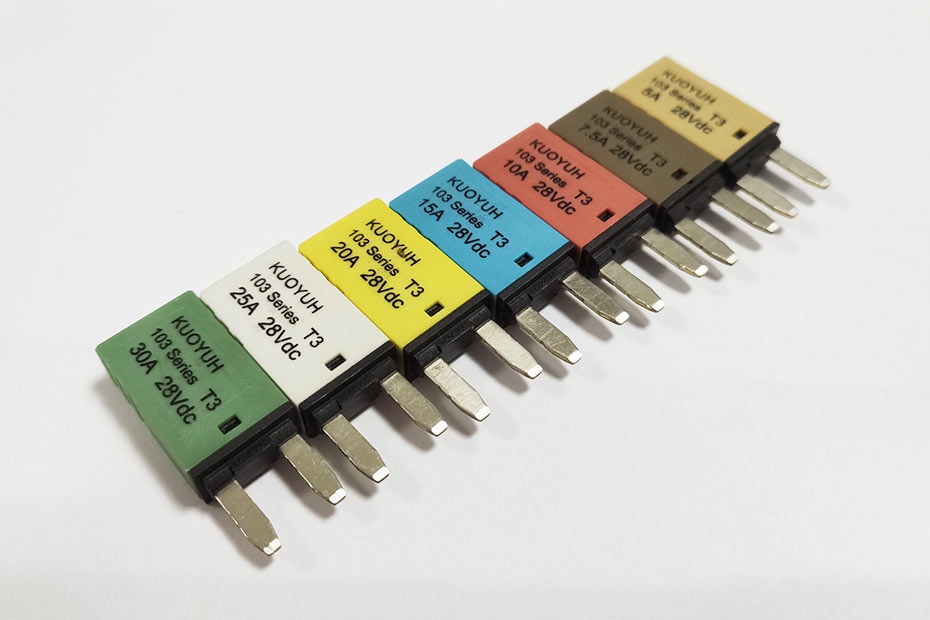

The body of 103 Series products are made of thermosetting plastic. Plastic cover. Like the fuse, the ampere is distinguished by the color of the cover. It is a circuit breaker designed for the installation of automotive fuse holders.

103 Series is 5A--30A, suitable for ATM type fuse blocks, marine, RV Car, battery protection etc.

Passed UL certification. Passed RoHS environmental protection certification…

Inquiry
Product Introduction

Key Features

  1. Following SAE J553 Standard and SAE J1171 Standard.
  2. Trip Free Cycling.
  3. Use UL-Rated 94V-0 Thermosetting plastics body.

Ratings

  1. Current rating range : 5A--30A
  2. Input voltage rating : 32VDC
  3. Interrupting Capacity : 2,000A / 28VDC

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric Strength Test : 1500VAC/min

Safety Certification

  • Electrical appliances certification : SAE

Add-on Service

Regarding laser printing, we provide OEM service. (not yet)

As for package, we provide customers with customized services.
