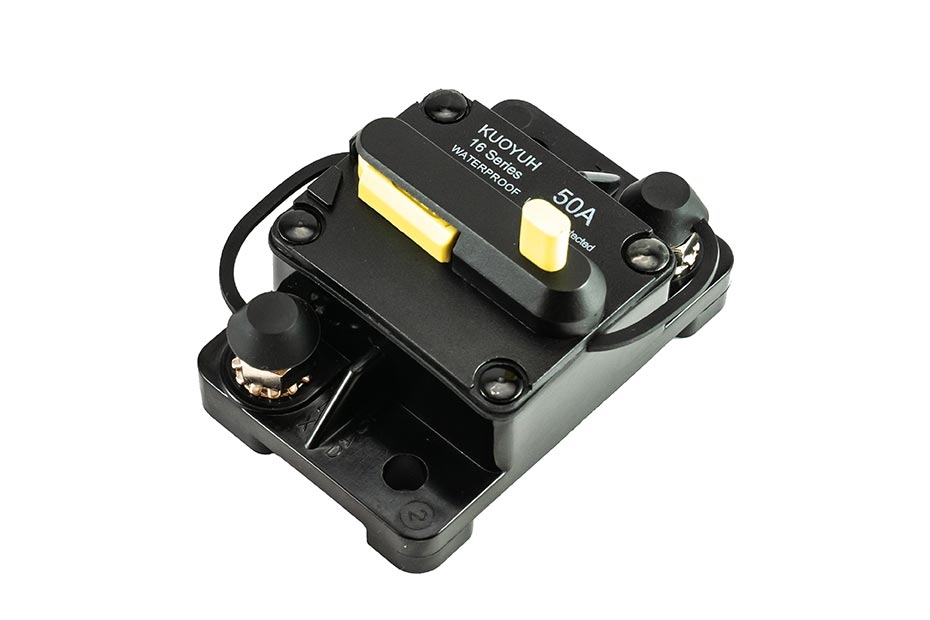

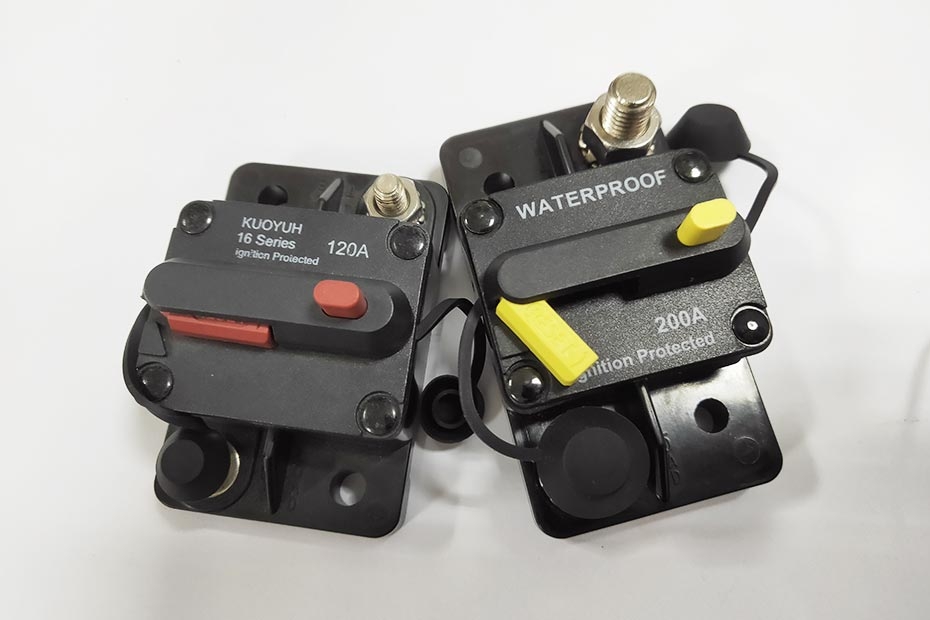

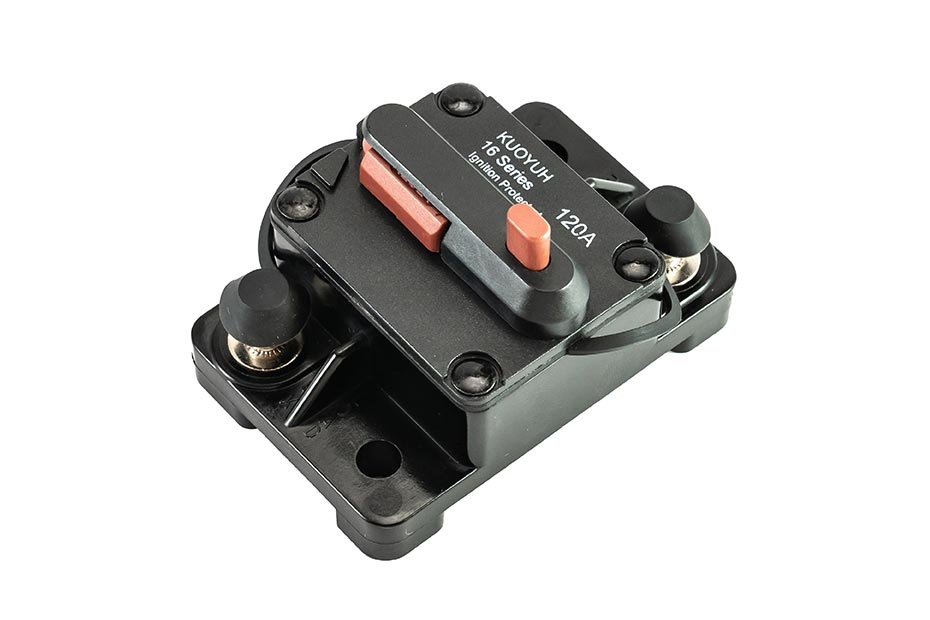

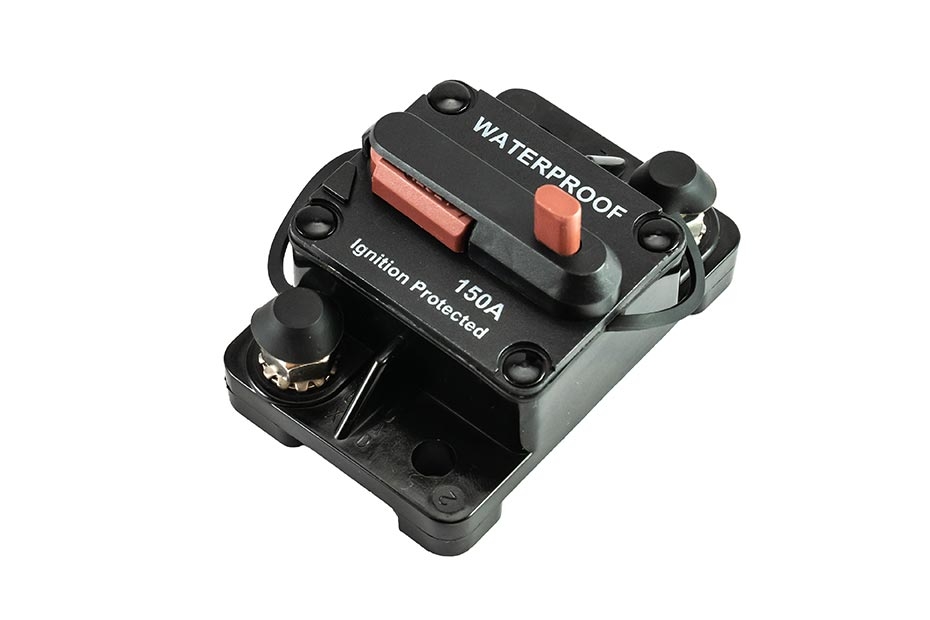

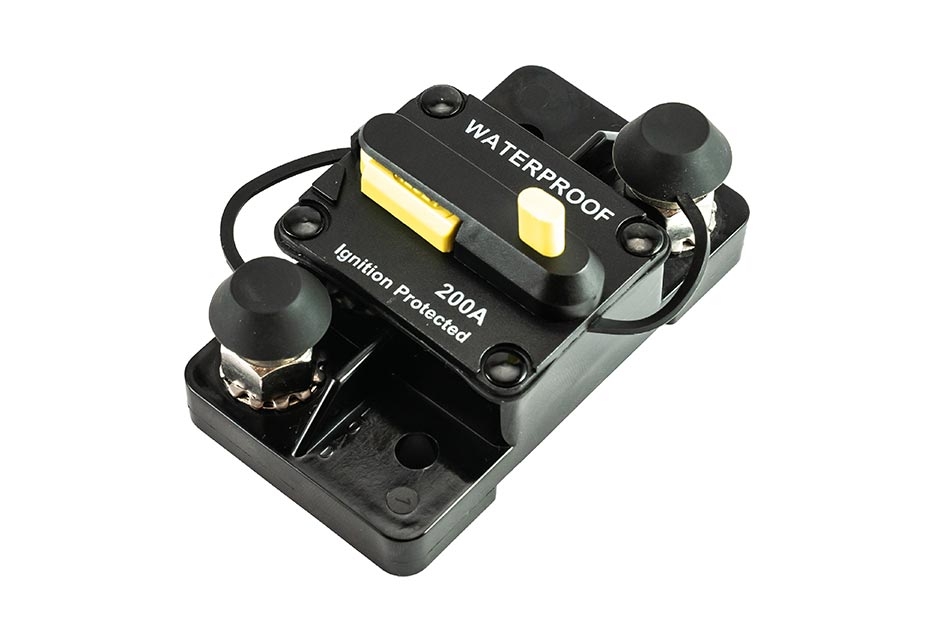

Product Name : 16F Series Push-To-Reset Circuit Breaker
Product Description

16F Series manual reset circuit breaker is a single-pole, single-push reset thermal protection switch, the products contains the functions of switch and protector. Commonly known as:Hi-amp Circuit breaker/ Heavy Duty Circuit breaker.

The 16F Series products made of bakelite, equipped with dustproof and waterproof design, it is a IP67 waterproof circuit breaker, The terminal part is made of stainless steel studs, which is anti-rust and with high strengths. Available in 1/4 "and 3/8".

16F Series is 30A--300A. Suitable for marine, RV Car, ATV, truck tailboard, winch, electric anchor, battery protection, vehicle inverter etc.

Passed UL certification. Passed RoHS environmental protection certification…

Product Introduction

Key Features

  1. Following SAE J553 Standard, SAE J1625, and ABYC-E11 Standard.
  2. Dustproof and waterproof design. Waterproof level: IP67.
  3. Ignition Protected, following SAE J1171; UL 1500 Standard.

Ratings

  1. Current rating range : 30A--300A
  2. Input voltage rating : 48VDC (30A---150A), 30VDC (175--- 200A), 14VDC (225---300A)
  3. Interrupting Capacity : 1,500A / 48VDC. Type III (30A--150A)。3000A / 14VDC. TypeIII(25A--200A)

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Corrosion: 96hr salt-spray
  3. Torque test:higher than 10kg*f
  4. Durability test : 10,000 times mechanical life test

Safety Certification

  • Electrical appliances certification : UL
  • Environmental standards : RoHS

Add-on Service

Regarding laser printing, we provide OEM service.

As for package, we provide customers with customized services.
