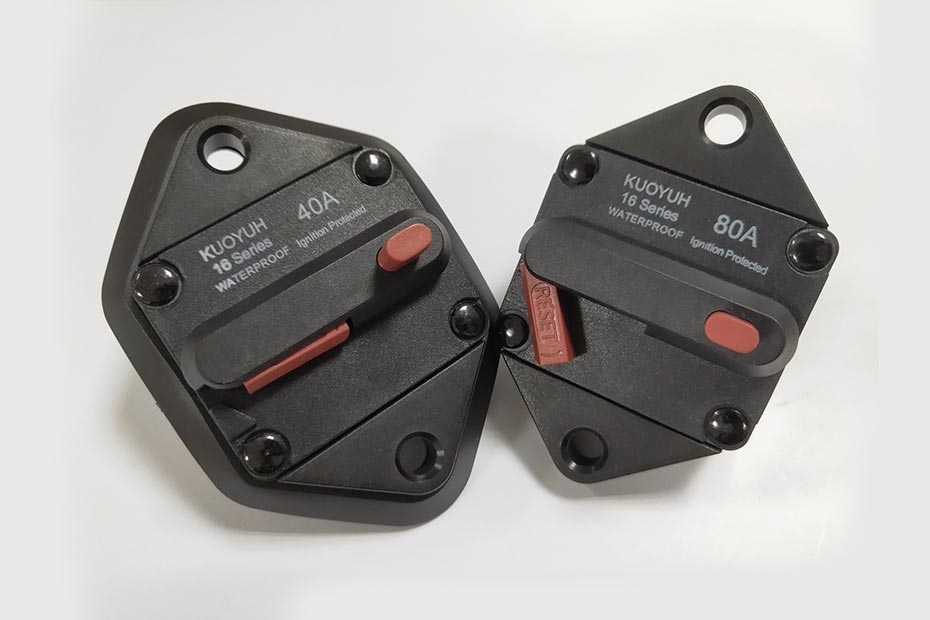

16P Series Push-To-Reset Circuit Breaker

KUOYUH 16P Series IP67 Waterproof Circuit Breaker

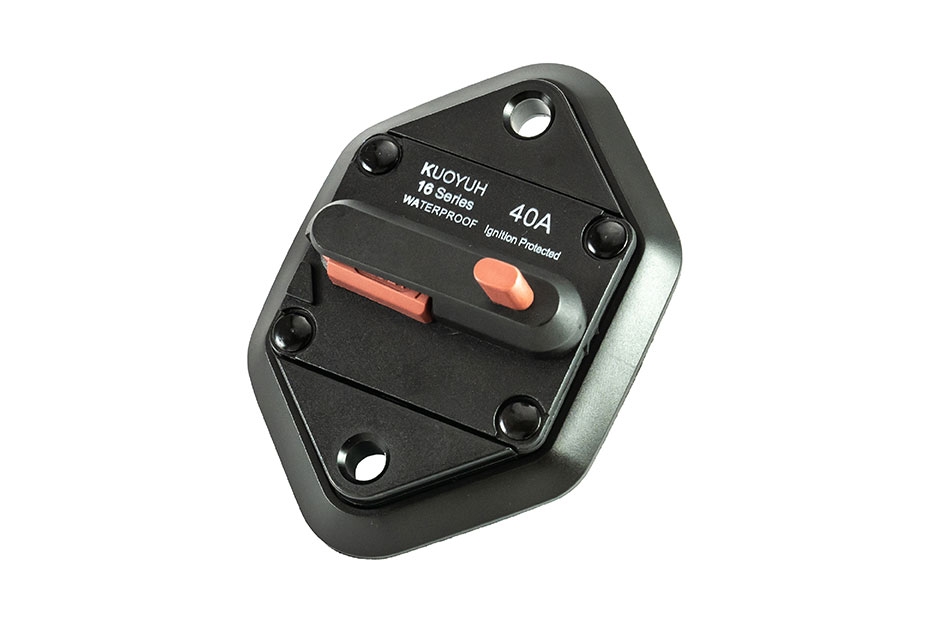

KUOYUH 16P Series IP67 40A Circuit Breaker

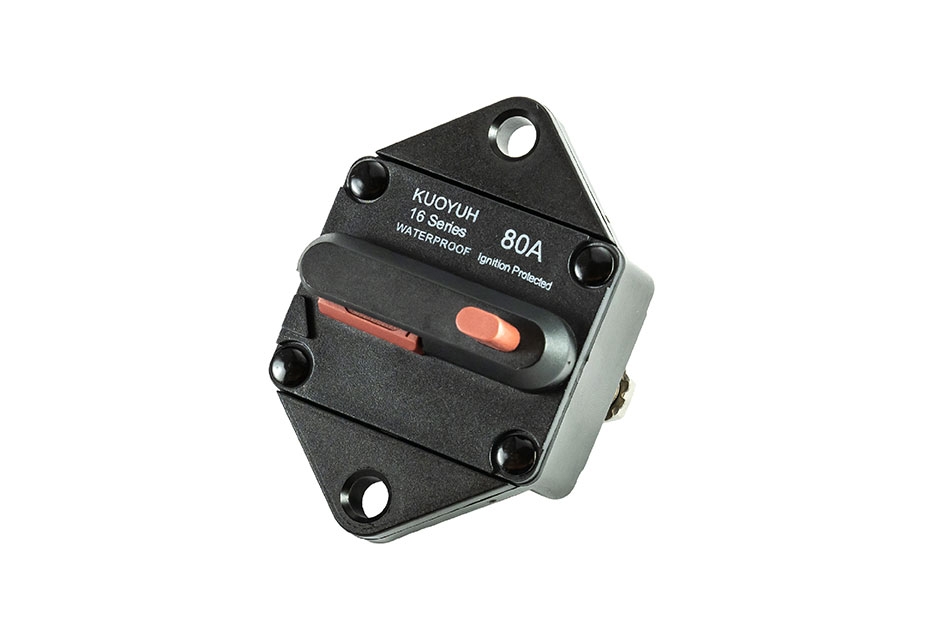

KUOYUH 16P Series Waterproof 80A Circuit Breaker
Product Name : 16P Series Push-To-Reset Circuit Breaker
Product Description

KUOYUH robust 16P Series Waterproof Hi-Amp Circuit Breaker, a manual reset thermal protection switch that doubles as both a switch and a protector. This switchable panel mount circuit breaker is designed with the highest standards in mind, crafted from durable bakelite and boasting a waterproof and dustproof IP67 rating. Its stainless steel terminal studs resist rust and ensure long-lasting performance.

With a current rating range of 30A to 150A, the 16P series panel mount circuit breaker is perfectly suited for a variety of high-demand applications, including marine anchor winches, RVs, trucks, winches, and battery protection systems. Its ease of use is exemplified by a single-push reset, and safety is a top priority with UL and RoHS certifications.

Whether you're at sea or on the road, this waterproof circuit breaker ensures your equipment operates smoothly while providing the protection it needs in harsh environments. Trust the 16P series panel mount IP67 waterproof circuit breaker to keep your power systems safe and reliable, even in the most challenging conditions.

Inquiry
Product Introduction

Key Features

  1. Following SAE J553 Standard, SAE J1625, and ABYC-E11 Standard.
  2. Dustproof and waterproof design. Waterproof level: IP67.
  3. Ignition Protected, following SAE J1171; UL 1500 Standard.

Ratings

  1. Current rating range: 30A--150A
  2. Input voltage rating : 48VDC (30A---150A)
  3. Interrupting capacity: 1,500A / 48VDC. Type III (30A--150A).

Testing Performed

  1. Current test: 200% current full-inspect test
  2. Corrosion: 96hr salt-spray
  3. Torque test: higher than 10kg*f

Safety Certification

  • Electrical appliances certification: UL, ABYC, SAE
  • Environmental standards: RoHS

Add-on Service

KUOYUH offers OEM service for 16P panel mount IP67 waterproof circuit breaker

Regarding laser printing, we provide OEM service.

KUOYUH offers customized packaging for 16P panel mount Hi-Amp circuit breaker

As for packaging, we provide customers with customized services.
