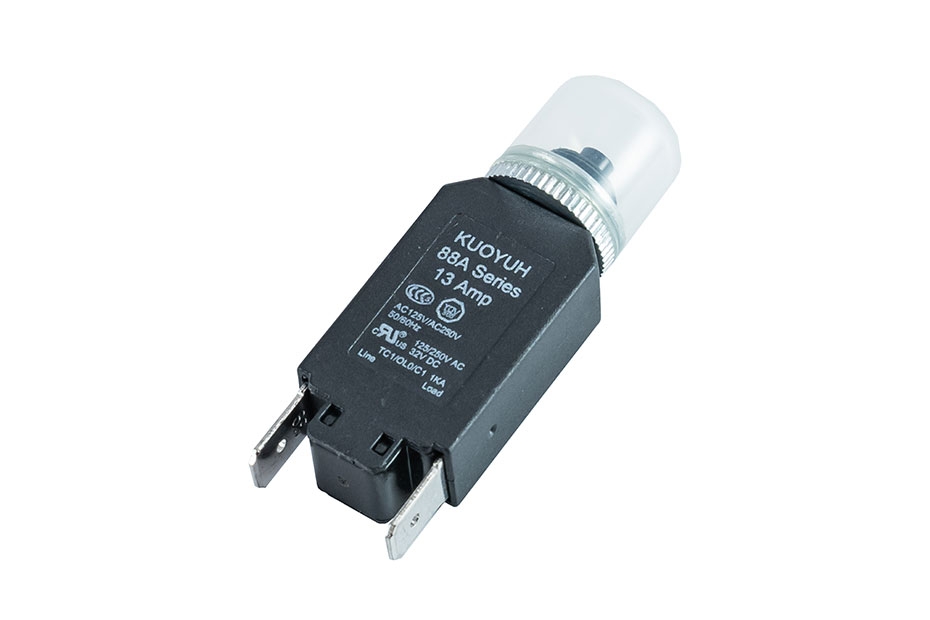

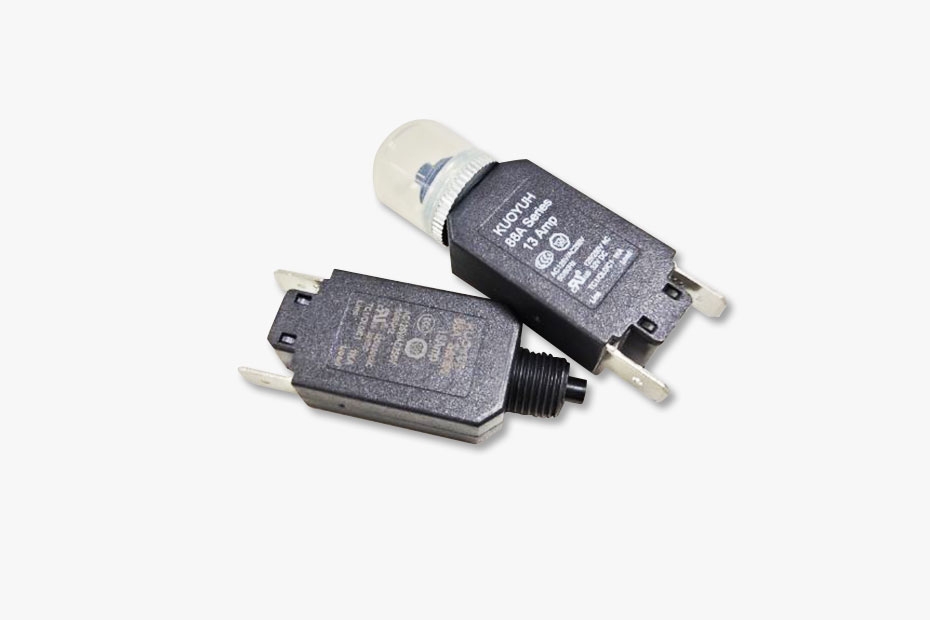

88A Series Push-To-Reset Circuit Breaker

88A Series Push Button Circuit Breakers
Push to Reset Circuit Breaker - 88A Series
Product Name : 88A Series Push-To-Reset Circuit Breaker
Product Description

88A Series Push-to-Reset circuit breaker is a unipolar, single-push reset thermal protector product, used to protect motor equipment.

88A Series products are small volume circuit breakers made of thermosetting plastic, suitable for small spaces.

88A Series is 3A--20A. Suitable for transformer, battery protection, protection of single phase motor uninterruptible power system, solenoids power strips erc.

UL/CUL(North America), CCC(China), TUV(Europe) certified. Passed RoHS environmental protection certification…

Inquiry
Product Introduction

Key Features

  1. Following UL1077 Standard, EN60934 Standard.
  2. Small current circuit breaker. Small in volume. Precise in action.

Ratings

  1. Current rating range : 3A--20A
  2. Input voltage rating : 125/250VAC; 32/50VDC
  3. Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric Strength Test : 1500VAC/min
  3. Glow-wire test : 650°

Safety Certification

  • Electrical appliances certification : UL, CUL, CCC, TUV
  • Environmental standards : RoHS

Add-on Service

Regarding laser printing, we provide OEM service. (not yet)

Installation method: Provide specified waterproof caps for customers to install and use. (not yet)
