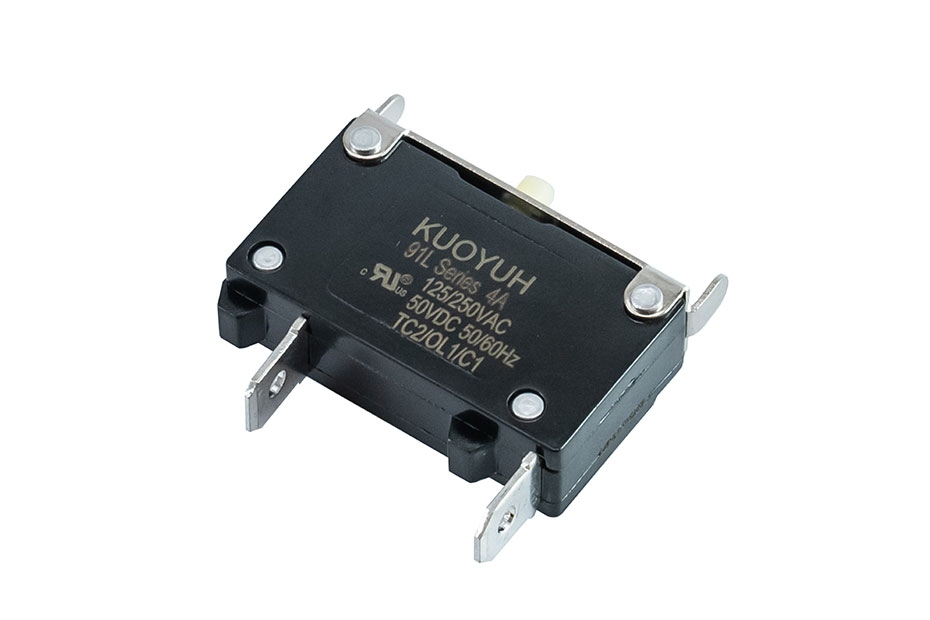

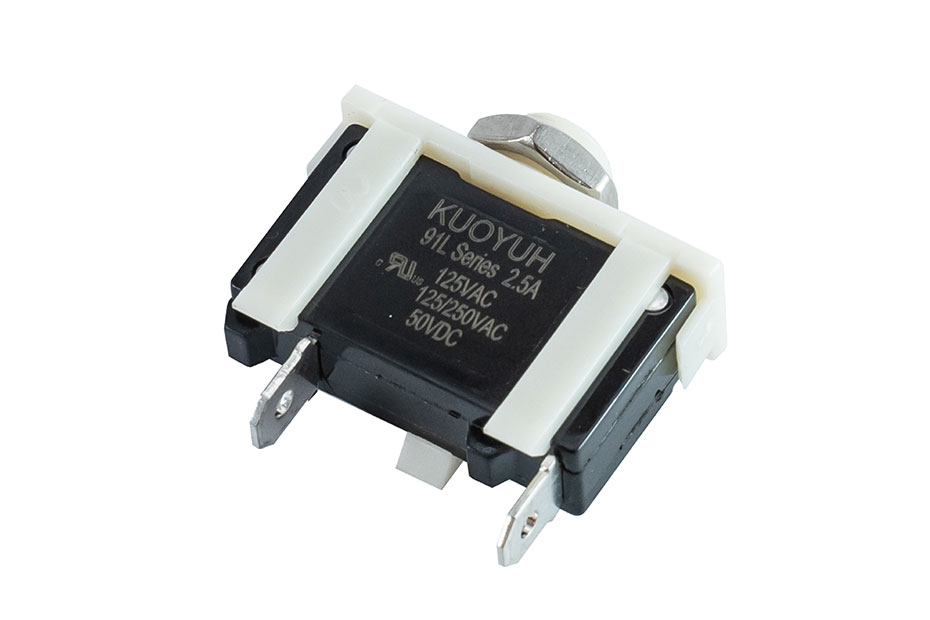

91L Series Push-To-Reset Circuit Breaker

91L Series | Push to Reset Circuit Breaker

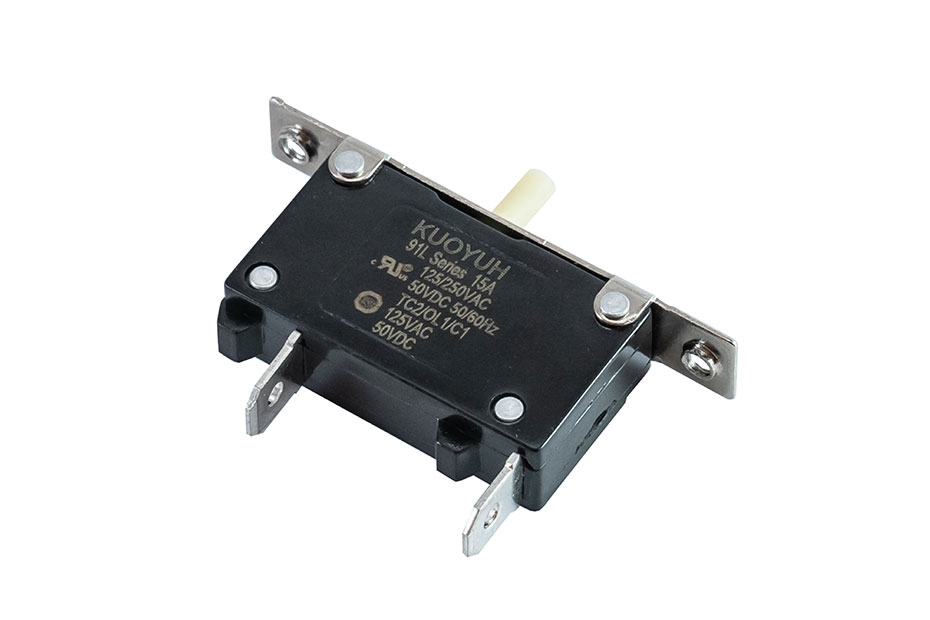

15 AMP Push Button Breaker - 91L Series

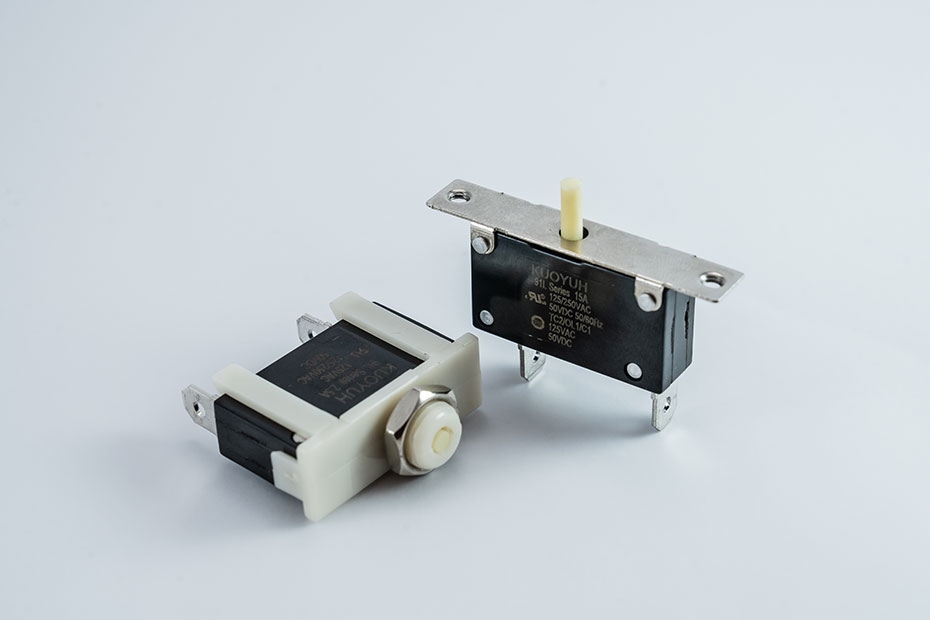

91L Series - Push Button Circuit Breaker
91L Series Push Button Circuit Breakers by KUOYUH

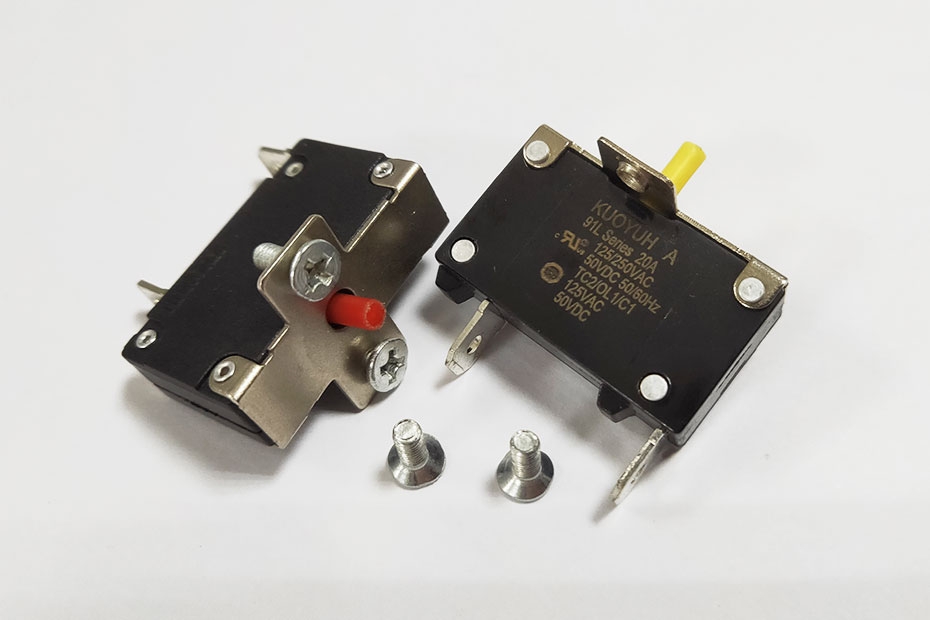

20 AMP Push Button Circuit Breaker - 91L Series
Product Name : 91L Series Push-To-Reset Circuit Breaker
Product Description

91L Series Push-to-Reset circuit breaker is a unipolar, single-push reset thermal protector product, used to protect motor equipment. Precise in design. It is a reliable circuit protection device.

91L Series push button circuit breakers are small volume circuit breakers made of bakelite, suitable for small spaces.

91L Series is 2.5A--20A. Suitable for Audio amplifier, transformer, generator, ATV, power strips, lawn mower etc.

UL/CUL(North America), CCC(China), TUV(Europe) certified. Passed RoHS environmental protection certification…

Inquiry
Product Introduction

Key Features

  1. Following UL1077 Standard, EN60934 Standard.
  2. Small current circuit breaker. Small in volume. Precise in action.
  3. (Cadmium free contacts)Comply with European environmental protection requirements.
  4. Trip Free Cycling

Ratings

  1. Current rating range : 2A--20A
  2. Input voltage rating : 125/250VAC; 32/50VDC
  3. Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric Strength Test : 1500VAC/min
  3. Glow-wire test : 850°

Safety Certification

  • Electrical appliances certification : UL, CUL, CCC, TUV
  • Environmental standards : RoHS

Add-on Service

As for package, we provide customers with customized services.

Regarding laser printing, we provide OEM service.(not yet)
