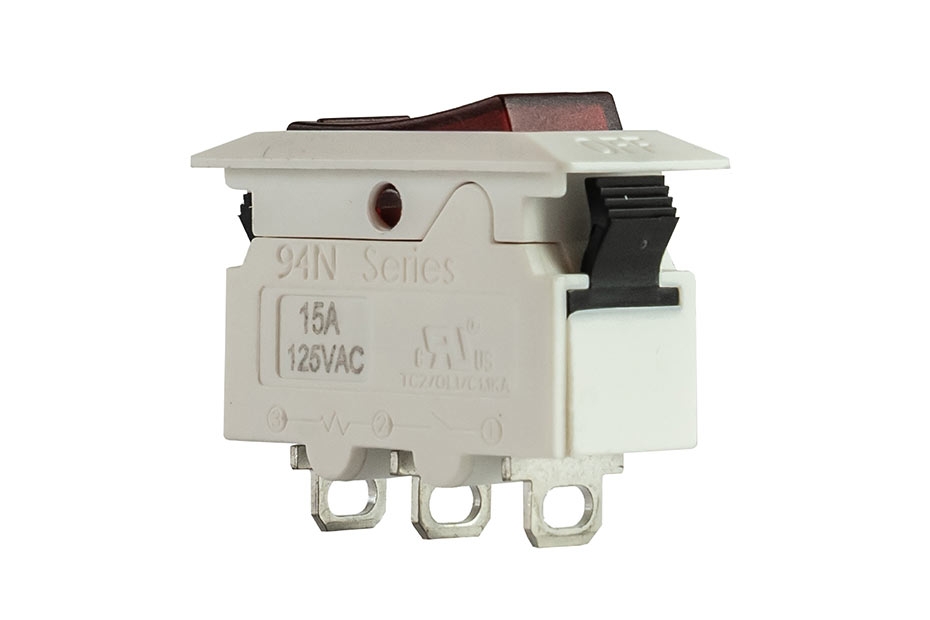

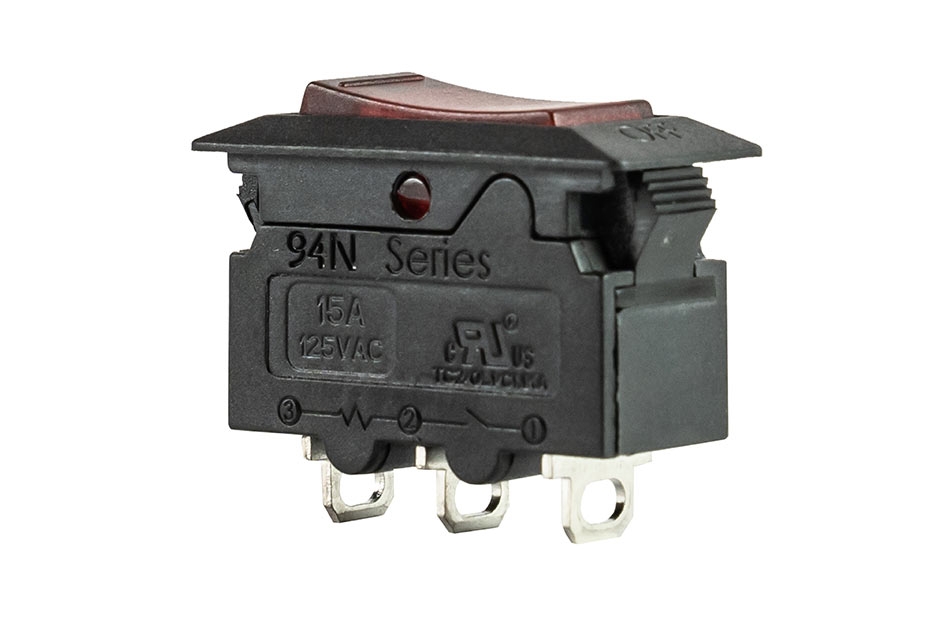

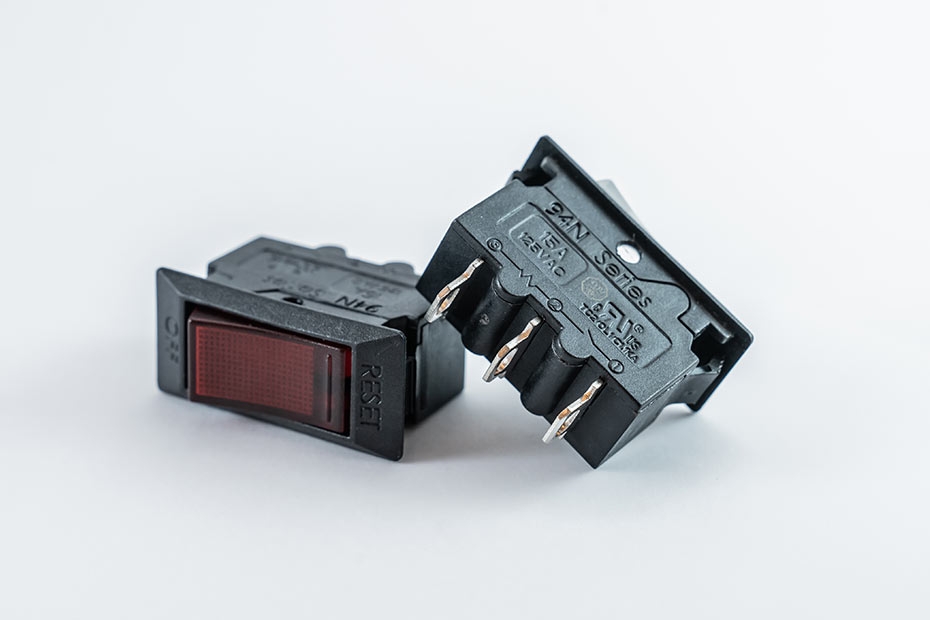

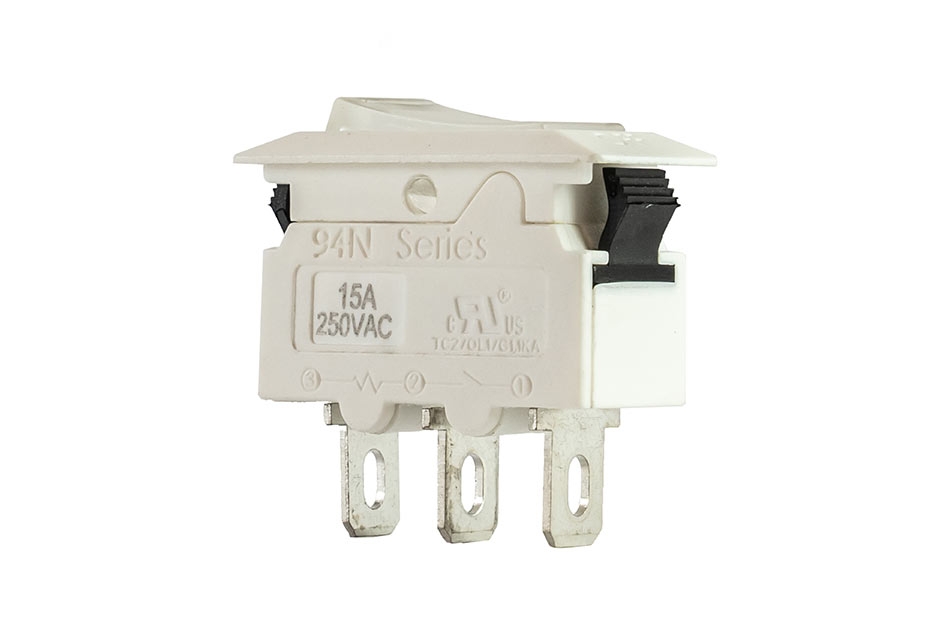

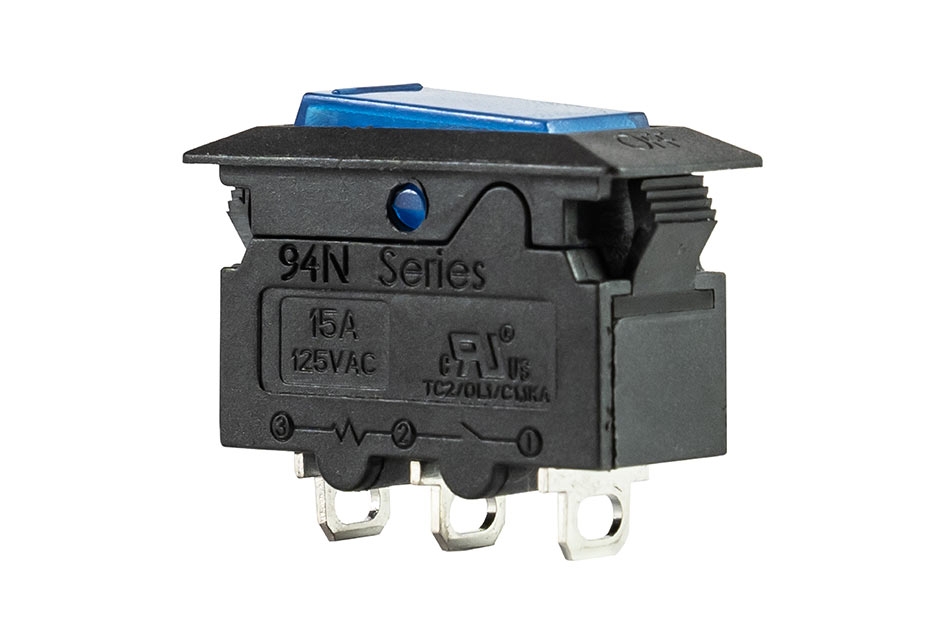

Product Name : 94N Series Two-In-One Overload Protector
Product Description

94N series two-in-one overload protection switch is a combination of switch and protector, plug-in tenon structure, specially designed for 550*1.125 industry standard mounting holes.

This series of products can save a lot of space for customers' panels, replacing two electronic components such as switches and overload protectors, which can significantly reduce the cost of wiring and assembly.

It is a universal and excellent protection device. The color of the lamp cover of the switch and the length of the terminal can be customized to provide customers with multiple choices.

The 94N series is 3A--16A, suitable for plug, extension cord, UPS, PDU, coffee machine, marine panel, etc.

Passed UL/CUL (North America), CCC (China), TUV (Europe), VDE (Europe) certification, etc. Passed RoHS environmental protection certification.

Inquiry
Product Introduction

Key Features

  1. Following UL1077 Standard, EN60934 Standard, IEC60934 Standard.
  2. Small current circuit breaker. Small in volume. Precise in action.
  3. (Cadmium free contacts) Comply with European environmental protection requirements.
  4. Trip Free Cycling.

Ratings

  1. Current rating range : 3A--16A
  2. Input voltage rating : 125/250VAC; 32/50VDC
  3. Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric strength test : 1500VAC/min
  3. Durability test : 10,000 mechanical life tests

Safety Certification

  • Electrical appliances certification : CB, UL, TUV, CCC, SAA
  • Environmental standards : RoHS, REACH
