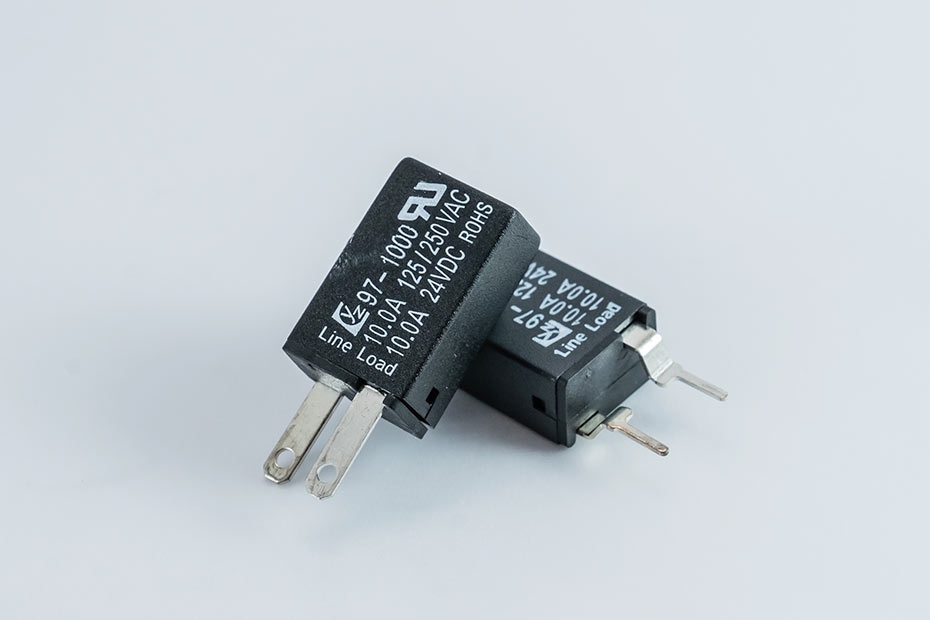

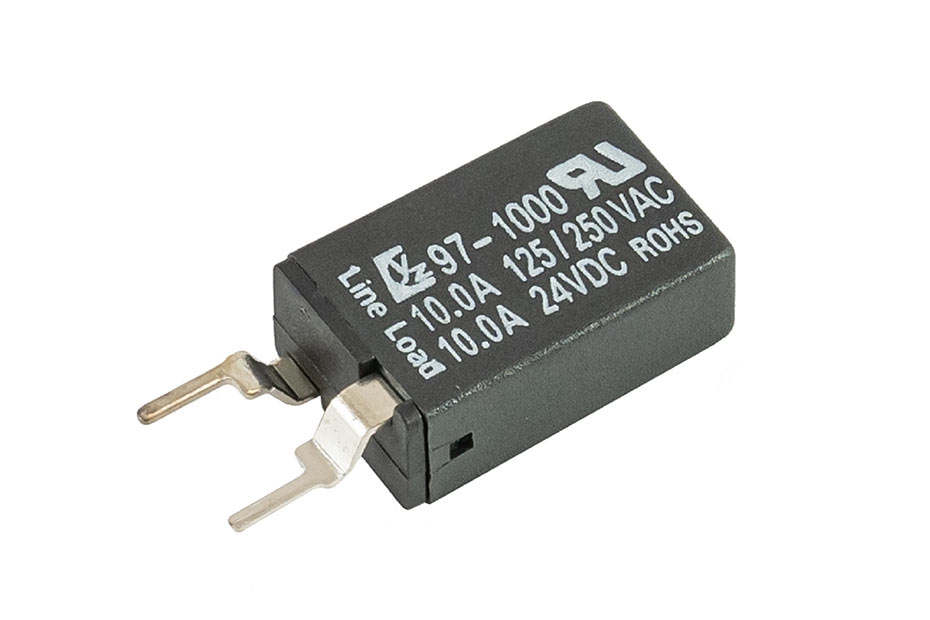

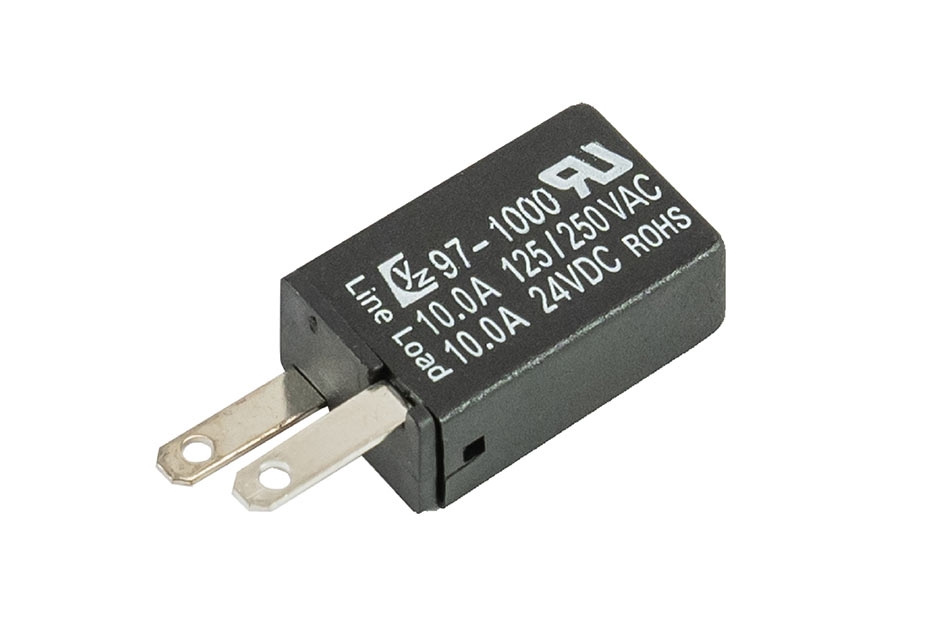

Product Name : 97 Series Auto-Reset-Circuit Breaker
Product Description

97 Series Automatic-reset circuit breaker is a unipolar and free cycle trip protection device, It is a reliable circuit protection device. Commonly known as PCB circuit breaker.

97 Series products are small in size, used in low-current motor protection and transformers, suitable for small space on electrical appliances and PCB.

98 Series is 0.8amps--15amps, Suitable for PCB, Blender, shredder, Power strip, Lamp transformer, etc.

Product Introduction

Key Features

  1. Small current protection device, small size, suitable for PCB board.
  2. (Cadmium free contacts) Comply with European environmental protection requirements.
  3. Trip Free Cycling.

Ratings

  1. Current rating range : 0.8A--15A
  2. Input voltage rating : 125/250VAC; 12/24VDC
  3. Interrupting Capacity : 125/250VAC x 200A

Testing Performed

  • Current test : 200% current full-inspect test
  • Dielectric Strength Test : 1500VAC/min

Safety Certification

  • Electrical appliances certification : UL, CCC
  • Environmental standards : RoHS

Add-on Service

As for package, we provide customers with customized services.
