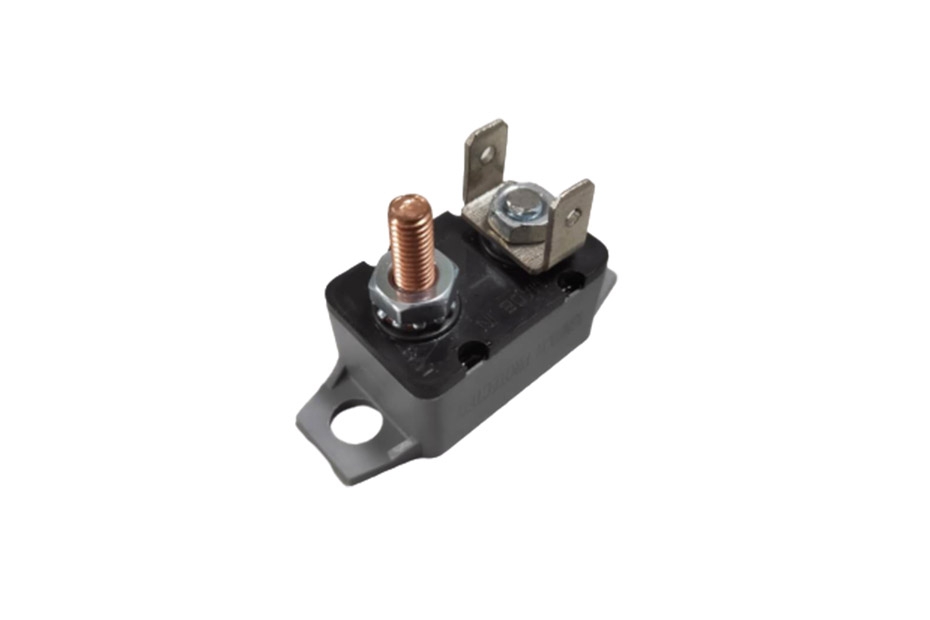

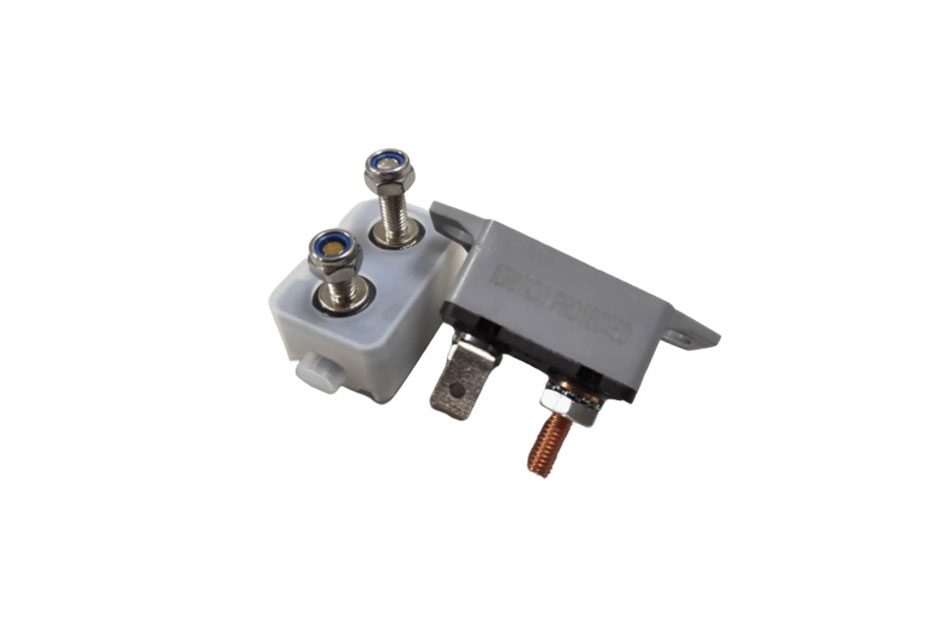

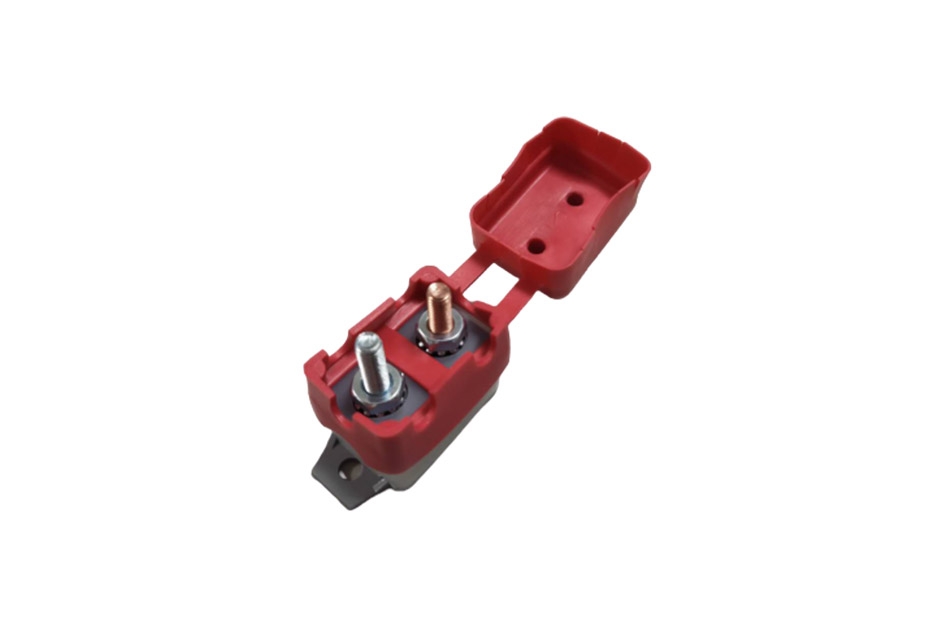

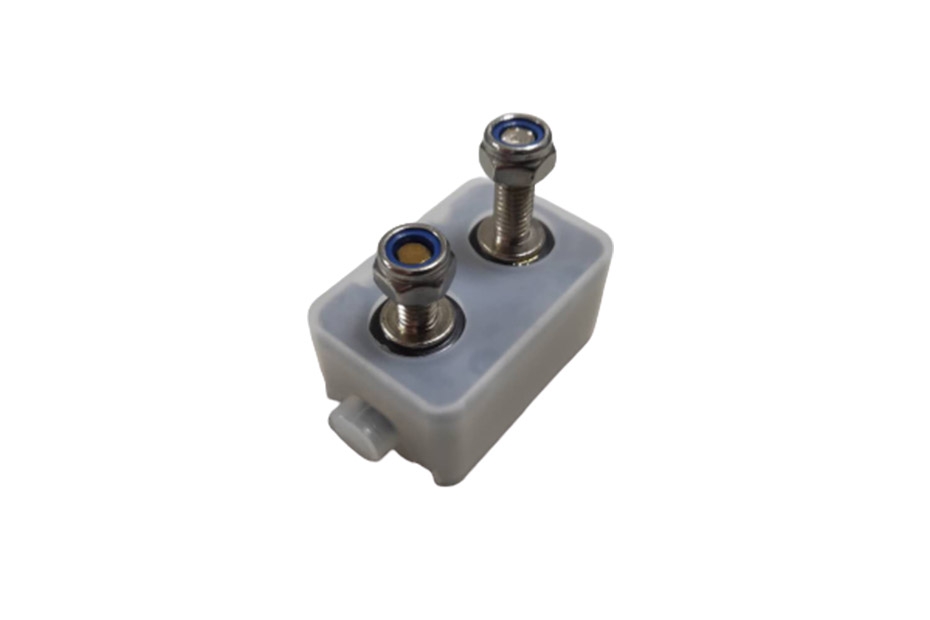

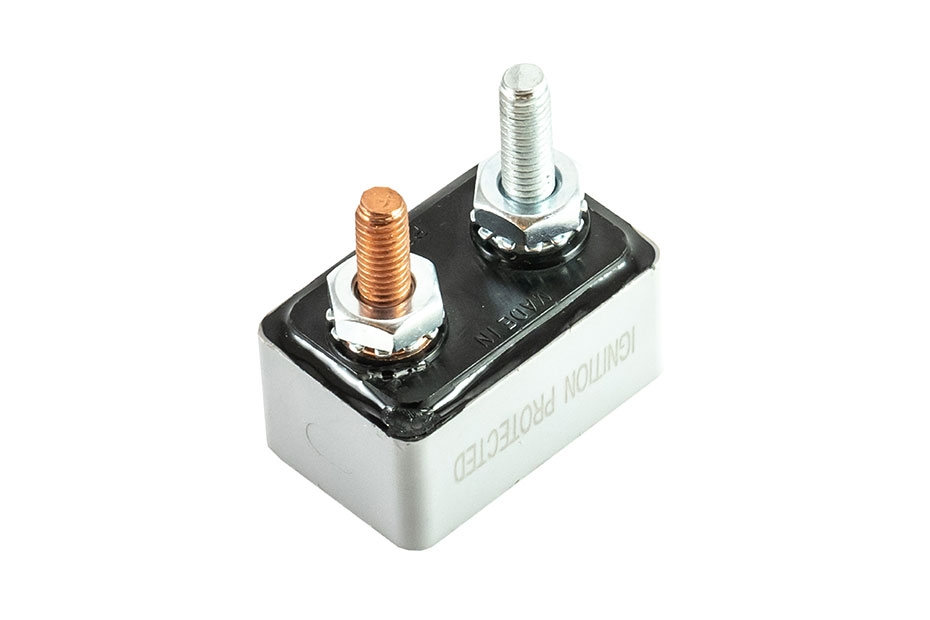

Product Name : AR Series Ignition Protected Circuit Breaker
Product Description

AR Series Automatic-reset circuit breaker is a unipolar and free cycle trip protection device. Commonly known as Short stop circuit breaker/Heavy Duty Circuit breaker/Box-Style Circuit Breakers.

The AR Series products is made of thermosetting plastic with a metal upper cover and a plastic upper cover. The stud terminal part is #10-32 thread.and 0.25" quick-connect AR Series is 3A--50A, Suitable for marine, RV Car, ATV, winch, electric anchor, Battery charger, jump starter, Trolling motor, pressure washer etc.

Passed UL certification. Passed RoHS environmental protection certification…

Product Introduction

Key Features

  1. Following SAE J553 Standard and SAE J1171 Standard.
  2. Trip Free Cycling.
  3. Use UL-Rated 94V-0 Thermosetting plastics body.


  1. Current rating range : 5A--60A
  2. Input voltage rating : 14VDC/28VDC
  3. Interrupting Capacity : 2500A/12VDC

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric Strength Test : 1800VAC/min
  3. Corrosion : 96hr salt-spray

Safety Certification

  • Electrical appliances certification : UL
  • Environmental standards : RoHS
