Product Name : AR Series Short Stop Circuit Breaker
Product Description

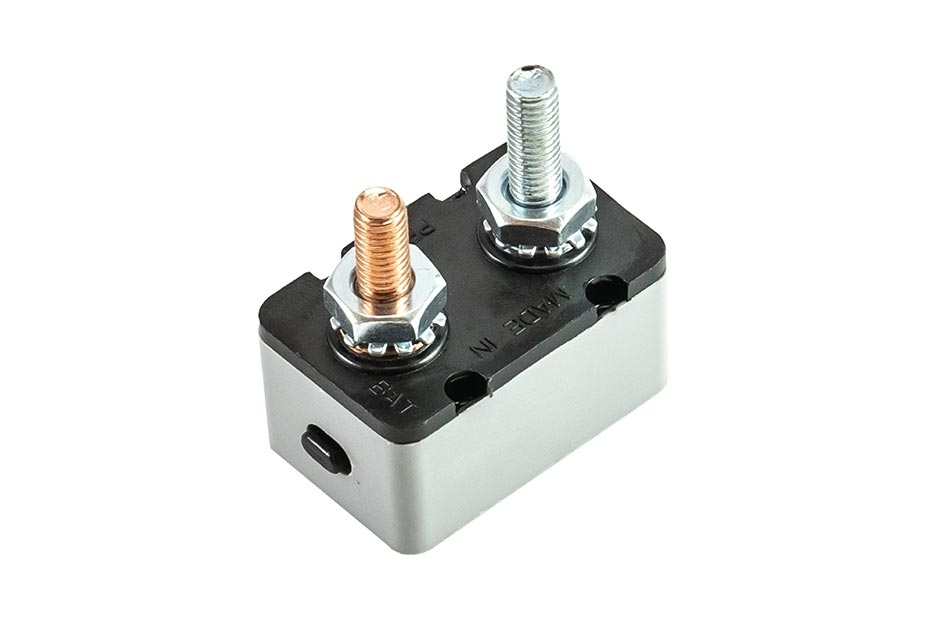

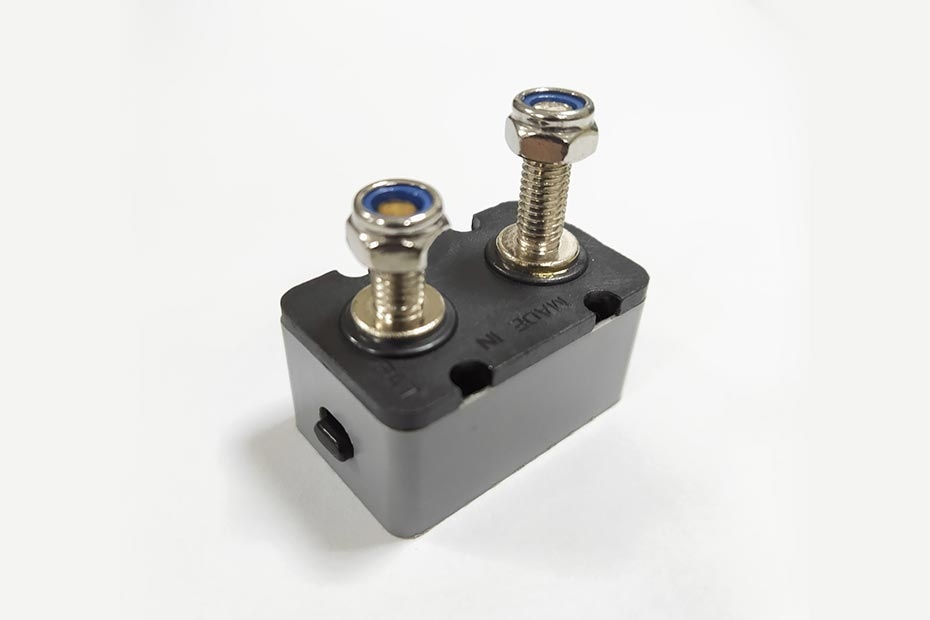

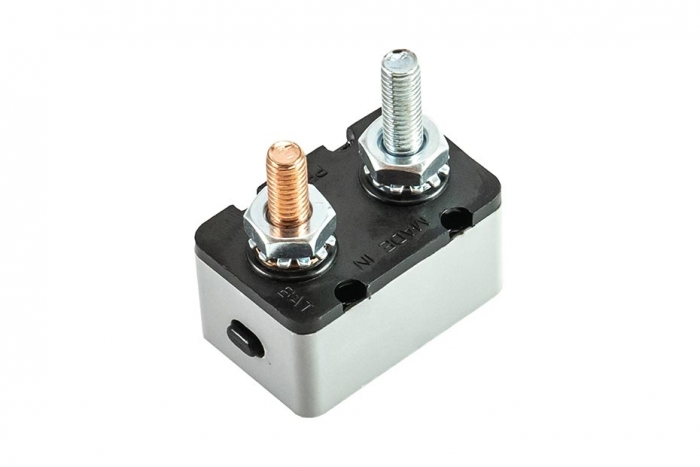

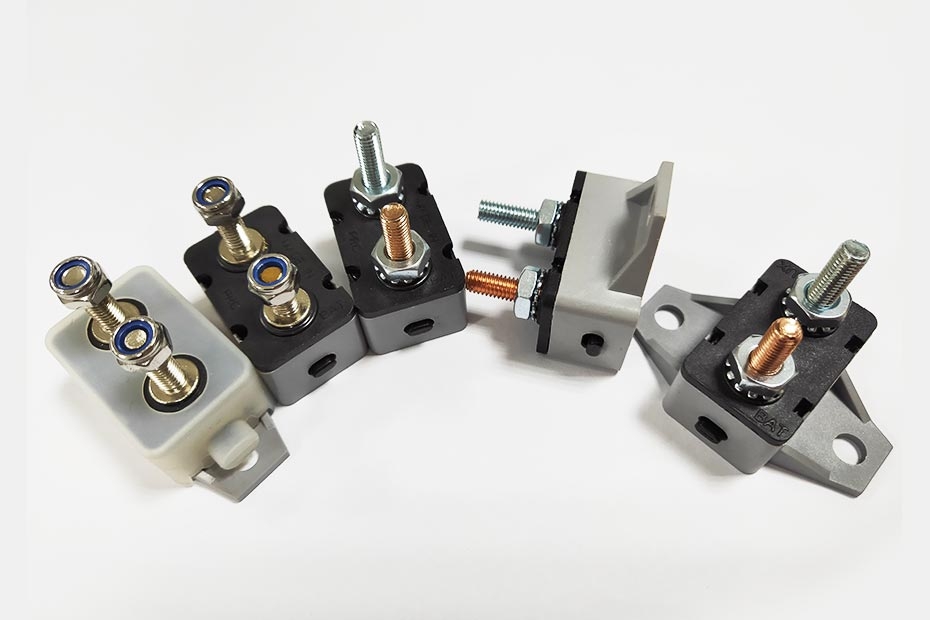

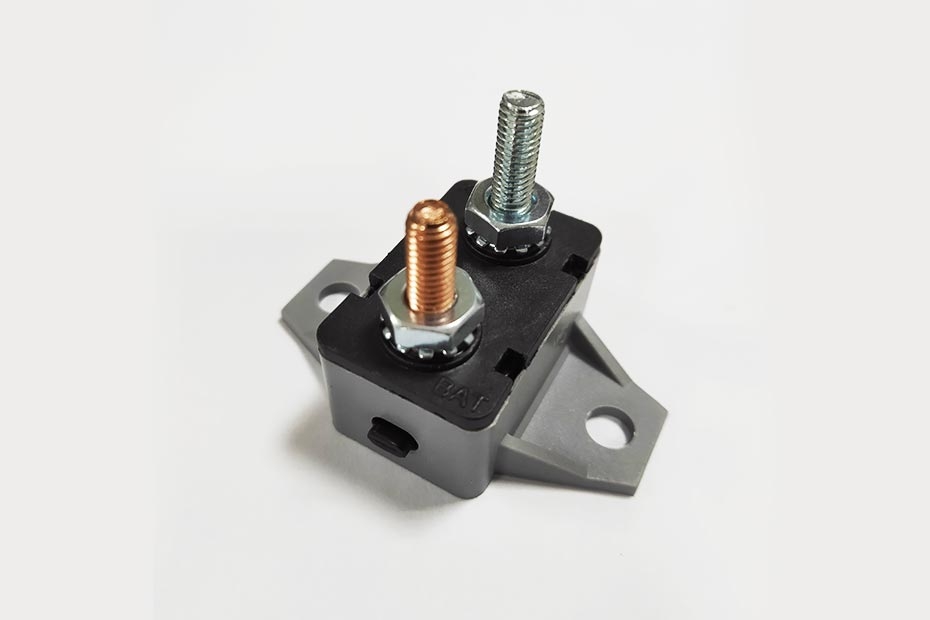

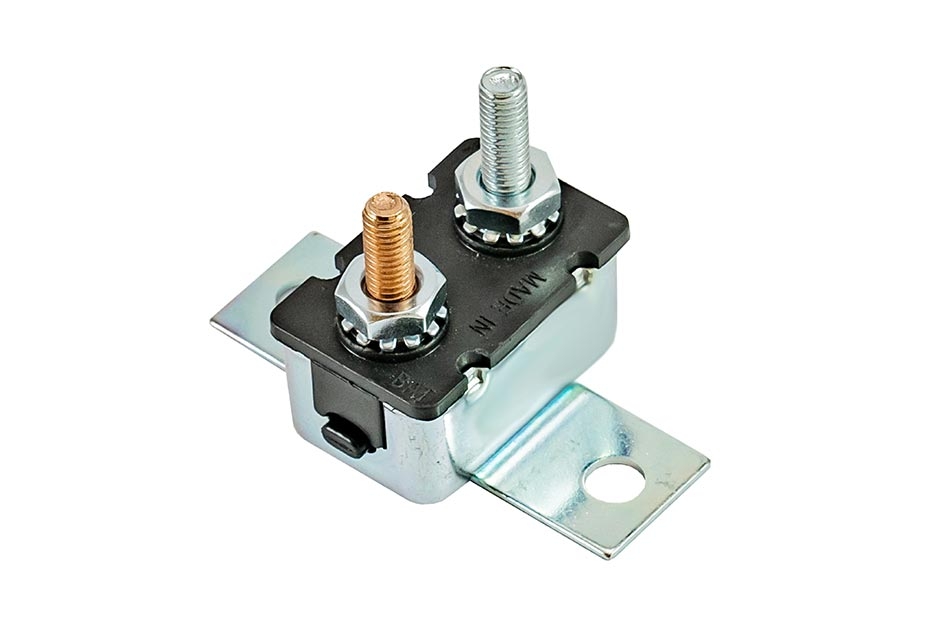

AR Series Short Stop Circuit Breaker is a single-pole, single-push reset thermal circuit protector. Commonly known as Short stop circuit breaker/Heavy Duty Circuit breaker/Box-Style Circuit Breakers.

The AR Series products is made of thermosetting plastic with a metal upper cover and a plastic upper cover. The stud terminal part is #10-32 thread.

AR Series is 3A--50A, Suitable for marine, RV Car, winch, electric anchor, Battery charger, jump starter, Trolling motor, pressure washer etc.

Passed UL certification. Passed RoHS environmental protection certification…

Inquiry
Product Introduction

Key Features

  1. Following SAE J553 Standard and SAE J1171 Standard.
  2. Trip Free Cycling.
  3. Use UL-Rated 94V-0 Thermosetting plastics body.

Ratings

  1. Current rating range : 5A--60A
  2. Input voltage rating : 14VDC/28VDC
  3. Interrupting Capacity : 2500A/12 VDC

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Corrosion : 1800VAC/min
  3. Torque test : 96hr salt-spray

Safety Certification

  • Electrical appliances certification : UL, SAE
  • Environmental standards : RoHS

Add-on Service

Regarding laser printing, we provide OEM service.

As for package, we provide customers with customized services.
