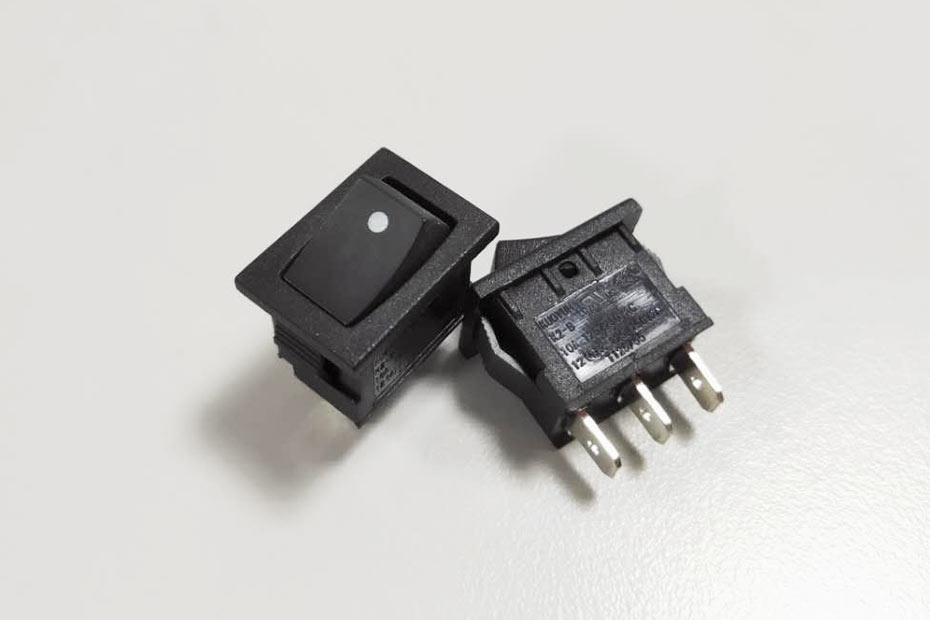

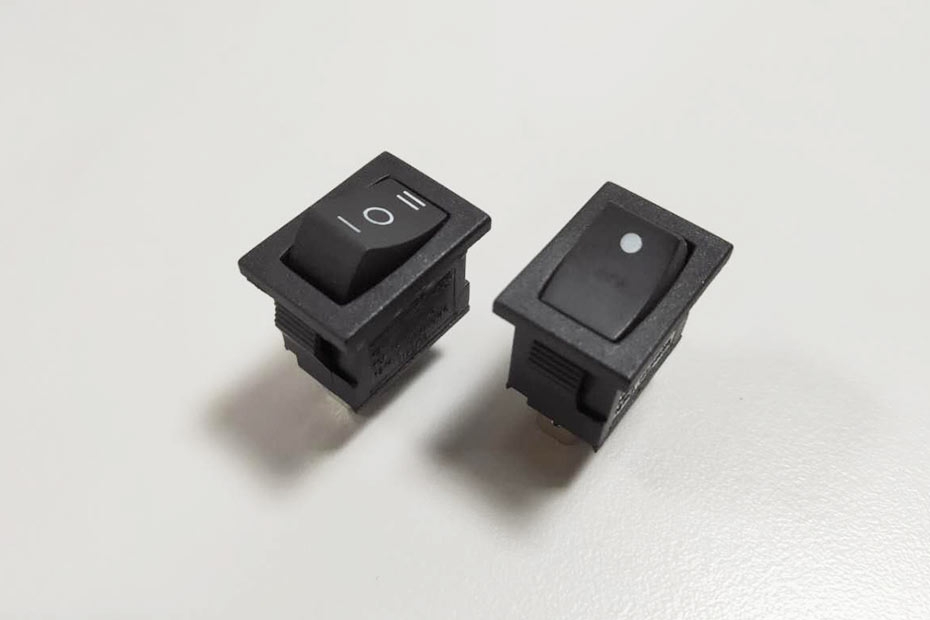

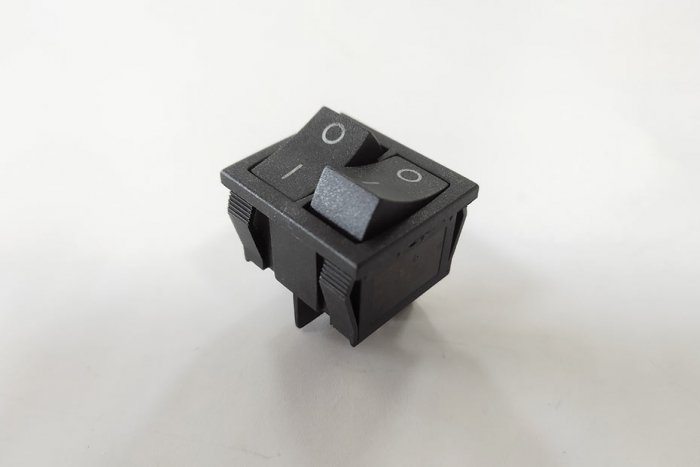

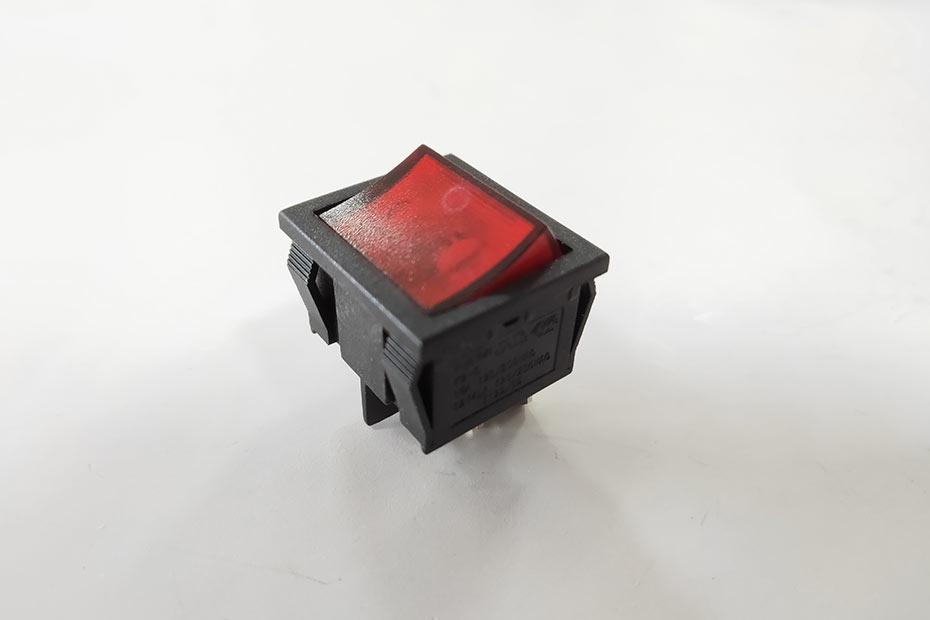

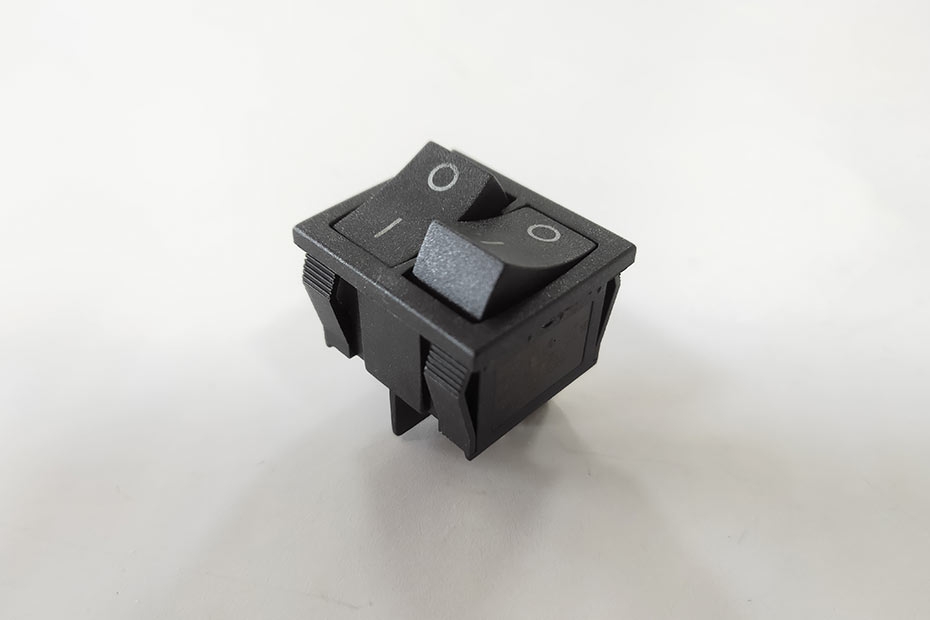

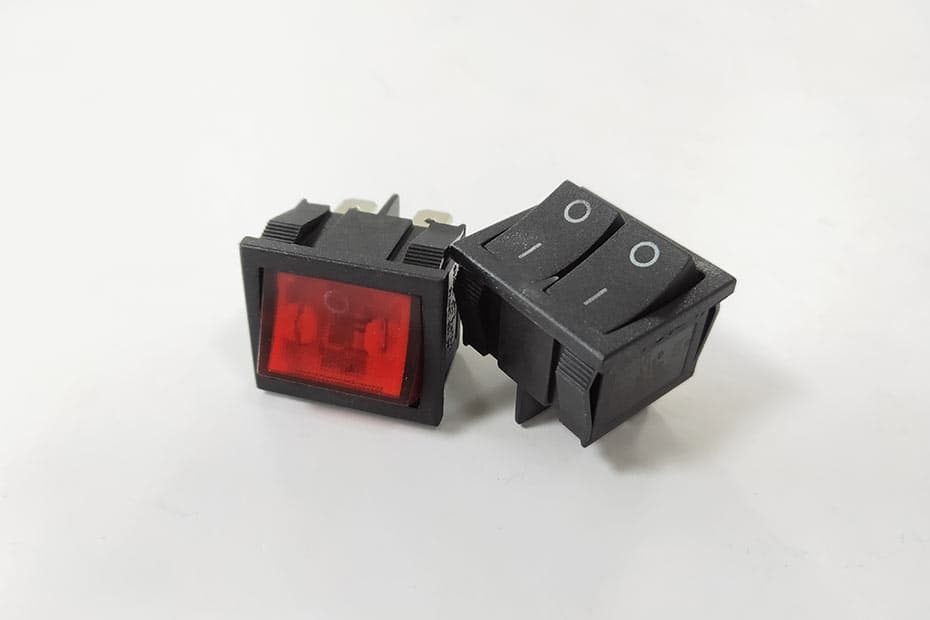

Product Name : K2 Series Rocker Switch
Product Description

K2 series are unipolar and bipolar rocker switches, the body part is made of nylon material (UL-flame: 94V-2), illuminated actuators are made of PC, we provide customers with various colors to choose.

The installation method adopts Snap-in structure, which is convenient for installation on the panel. The terminal part is nickel-plated copper, you can use 6.35mm quick plug terminals for connection.

Rocker switch size : 21*15 & 12*24

Suitable for use in power supplies, motor control boxes, power strips, power tools, generators, fitness equipment, lamps, food conditioners, refrigeration equipment, uninterruptible power systems, etc.

Product Introduction

Key Features

  1. Following IEC61058-1 Standard, UL61058-1 Standard, EN61058-1 Standard.
  2. (Cadmium free contacts) Comply with European environmental protection requirements.
  3. Snap-in design, easy to install.


  1. Electrical Rating : 20A 125/250VAC; 16(6) A, 125/250 VAC; 12(4)A 250VAC

Testing Performed

  1. Electrical life : More than 10,000 times electrical life tests
  2. Dielectric strength test : 1500VAC/min

Safety Certification

  • Electrical appliances certification : CB, CCC, UL, ENEC
  • Environmental standards : RoHS
