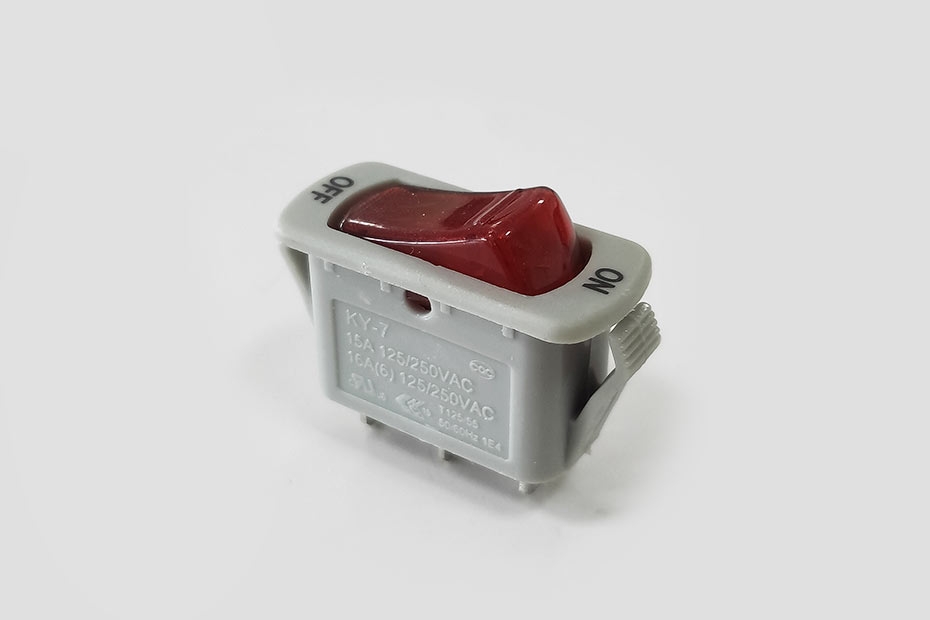

Product Name : KY7 Series Rocker Switch
Product Description

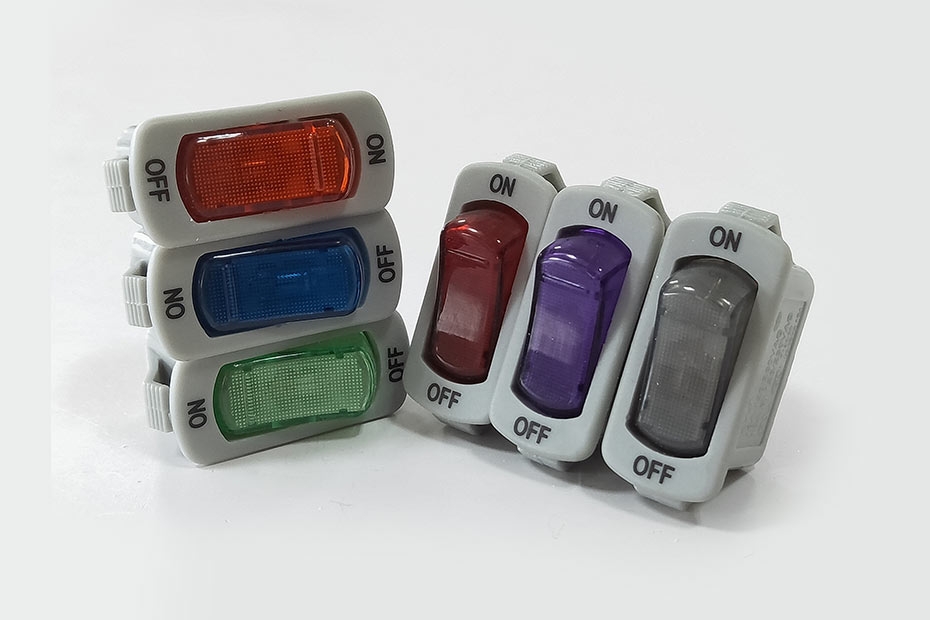

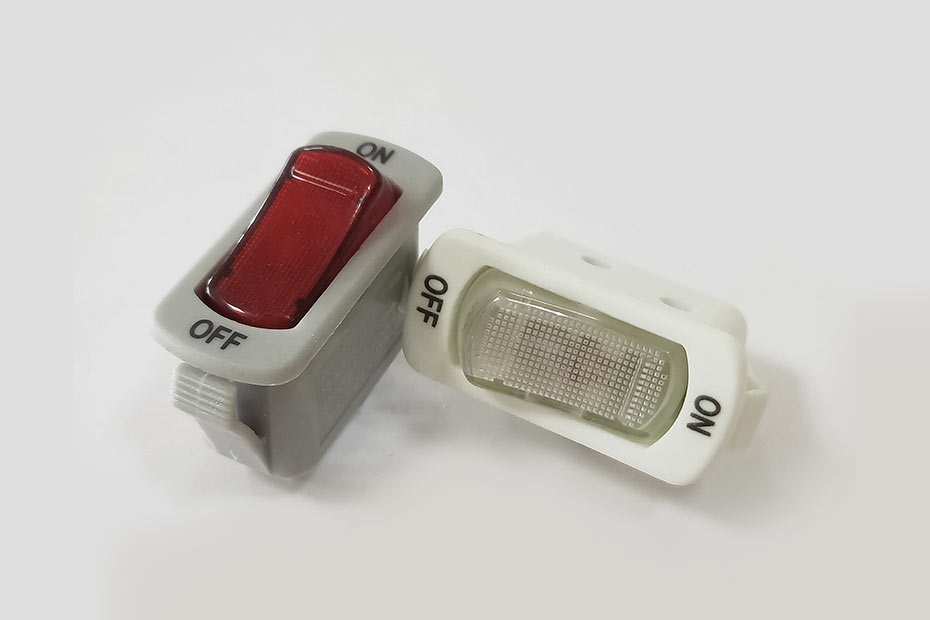

KY7 series are single pole single throw rocker switches, the body part is made of nylon material (UL-flame: 94V-2), illuminated actuators are made of PC, and we provide customers with various colors to choose from.

The installation method adopts a Snap-in structure, which is convenient for installation on the panel. The terminal part is nickel-plated copper, you can use 6.35mm quick plug terminals for connection.

Suitable for use in power switches, power strips, machine tools, lamps, etc.

Product Introduction

Key Features

  1. Following IEC61058-1 Standard, UL61058-1 Standard, EN61058-1 Standard.
  2. (Cadmium-free contacts) Comply with European environmental protection requirements.
  3. Snap-in design, easy to install.


  1. Current rating range : 20A 125/250VAC ; 16(6)A 125/250VAC

Testing Performed

  1. Electrical life: More than 10,000 times electrical life tests
  2. Dielectric strength test: 1500VAC/min

Safety Certification

  • Electrical appliances certification: CB, CCC, UL, ENEC
  • Environmental standards: RoHS
