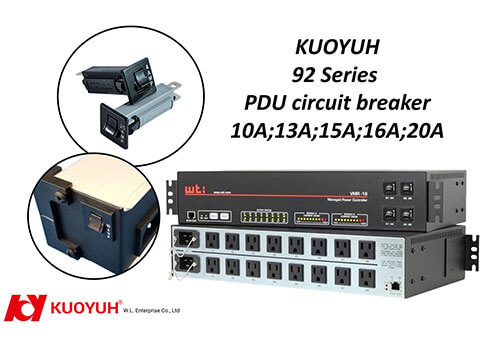

Inside the KUOYUH 92: The Engineering Behind Precision PDU Protection

When designing a Power Distribution Unit (PDU), engineers face a difficult contradiction. The PDU must be sensitive enough to stop dangerous short circuits immediately, but "tough" enough to ignore the sudden power spikes when servers are switched on.

This balance requires more than a simple on/off switch. It requires the precision engineering of the KUOYUH 92 Series Circuit Breaker.

This article dives into the engineering mechanisms—specifically the thermal physics and calibration standards—that make the KUOYUH 92 Series the standard choice for reliable data center power distribution.

The Heart of the Breaker: Bimetallic Technology

Reliability in a data center means minimizing points of failure. Unlike complex software-controlled sensors that can glitch, freeze, or require firmware updates, the KUOYUH 92 Series relies on the consistent laws of physics.

Inside every KUOYUH 92 breaker is a specialized Bimetallic Strip. This strip is composed of two different metals bonded together.

• • How it works: When electrical current passes through the strip, it generates a tiny amount of heat. Because the two metals expand at different rates, the strip bends physically.
• • The Trip Mechanism: If the current exceeds the safe limit (for example, 15A), the heat causes the strip to bend far enough to mechanically unlatch the switch, cutting the power instantly.

Why this matters for PDUs:

This mechanism is immune to electronic noise, software bugs, or network failures. It is a standalone, physical safeguard that works 24/7 without external power.

Handling the "Inrush Current" Challenge

Data centers have a unique electrical behavior known as Inrush Current.

When a rack of servers or network switches is powered on, the current usage momentarily spikes to 200% or 300% of normal levels for a few milliseconds. A cheap fuse or a standard household breaker might interpret this spike as a fault and cut the power. This is known as a "Nuisance Trip."

The KUOYUH 92 Series is engineered with specific Trip Curves (Time-Current Curves) to solve this:

• • Smart Delay: The thermal mass of the bimetallic strip creates a natural, calculated delay. It allows the harmless, momentary "Inrush Current" to pass through.
• • Instant Reaction: However, if the high current continues (indicating a true overload or short circuit), the breaker heats up and trips effectively.
• • Result: You can start your high-power equipment confidently without the breaker tripping by mistake.

Defining "Precision" in Overload Protection

The title of this article mentions "Precision." In the world of circuit protection, precision means Calibration.

A generic, low-quality breaker labeled "10A" might actually trip at 8A (too early) or 14A (too late, risking fire).

KUOYUH utilizes automated, high-precision calibration lines during manufacturing. We ensure that a 10A breaker behaves exactly like a 10A breaker.

• • Hold Current: It will hold 100% of the rated current without tripping.
• • Trip Current: It will trip within a specific time window when the current reaches the overload threshold (typically 135% - 200%, depending on the spec).

This consistency is why top-tier PDU manufacturers trust the 92 Series. They can predict exactly how the protection will behave in the field

Integration Guide for PDU Designers

The KUOYUH 92 Series is not just about protection; it is designed to fit into the tight constraints of modern hardware.

• • Compact Footprint: It is sized to fit easily into 1U or 0U PDU chassis, maximizing space for internal airflow and cable routing.
• • Flexible Terminals: Available with various terminal types (Quick Connect, Solder, Screw) to match different assembly line requirements.
• • Global Voltage Support: Whether the PDU is designed for 125VAC (North America) or 250VAC (Europe/Asia), the 92 Series carries global certifications (UL, TUV, CCC) to simplify export compliance.

Conclusion: Small Component, Massive Impact

The KUOYUH 92 Series acts as the "brain" of the PDU's safety system. It distinguishes between safe daily operations and dangerous electrical faults using reliable thermal physics.

For PDU distributors and designers, choosing the 92 Series means choosing a component that balances sensitivity to faults with stability against false alarms.

Ready to Optimize Your PDU Design?

Whether you need specific trip curves, custom terminal configurations, or samples for testing, our engineering team is ready to assist. Ensure your power infrastructure meets the highest standards of precision and safety. Contact KUOYUH technical support today！
