Blade-Style Circuit Breakers: Reliable Power Protection for Long-Haul Trucks and Fleets
Picture this: you’re driving your truck down a long highway when the electrical system suddenly fails. With no spare fuses on hand, you’re stranded—helpless, frustrated, and delayed, waiting for roadside assistance.
Now imagine a different scenario. With a blade-style circuit breaker, the story changes. When an overload occurs, the breaker trips instantly to protect your equipment. All you need to do is open the fuse box, locate the tripped breaker, fix the issue, and reset it. Within minutes, you’re safely back on the road—with less downtime, lower costs, and complete peace of mind.
What Is a Blade-Style Circuit Breaker?
A blade-style circuit breaker is designed with the same terminals as a traditional fuse (available in Maxi, ATC, ATO, and Mini sizes), so it can be directly installed into a standard automotive fuse box.
Unlike single-use fuses, a blade breaker is resettable. When an overload occurs, it trips and interrupts the circuit. Once the issue is resolved, it can be reset—no replacement parts required. This makes it ideal for long-haul trucks, buses, and fleet vehicles, where unplanned downtime is costly and unacceptable.
Key Advantages of KUOYUH Blade-Style Circuit Breakers
Traditional fuses burn out and must be replaced. Drivers often carry spares, which is inconvenient and expensive. KUOYUH blade-style breakers are reusable, supporting thousands of reset cycles. This reduces operating costs and boosts fleet efficiency.
Built with a thermal trip mechanism, KUOYUH breakers respond quickly to overcurrent conditions. They protect motors, lighting, and electronics from overheating and fire hazards, ensuring greater safety on the road.
KUOYUH offers multiple blade sizes for different vehicle requirements:
- • Maxi: High-current protection for heavy-duty trucks and buses.
- • ATC / ATO: Standard size, widely used in trucks and passenger cars.
- • Mini: Compact for space-constrained circuits in modern vehicles.
All KUOYUH breakers meet major standards: SAE J553 (circuit breaker safety) and SAE J1171 (ignition protection). Made with UL94-V0 flame-retardant thermoplastic and tin-plated copper terminals, they perform reliably even in harsh environments.

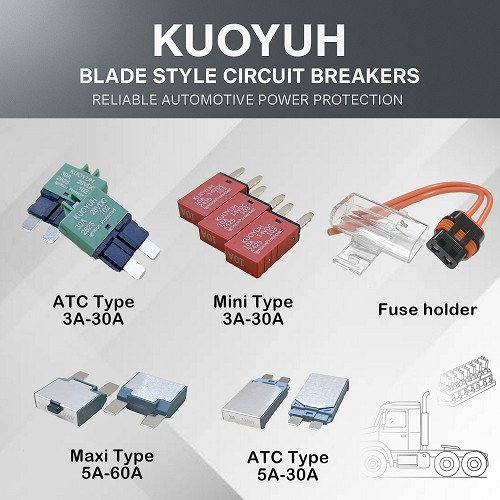

KUOYUH Blade-Style Circuit Breaker Product Series
102 Series: ATO/ATC Breaker
- • Current Range: 3A–30A
- • Voltage: 14VDC (auto reset) / 28VDC (manual reset)
- • Material: UL 94-V0 thermoplastic, tin-plated copper alloy
- • Terminal: 5.2mm width, fits ATC fuse holders
- • Certifications: SAE J553 / SAE J1171

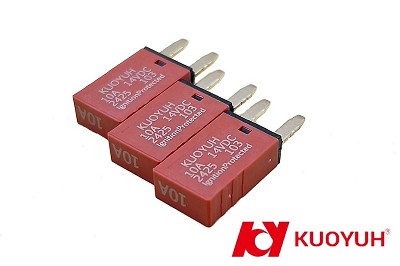

103 Series: Mini Breaker
- • Current Range: 3A–30A
- • Voltage: 14VDC (auto reset) / 28VDC (manual reset)
- • Material: UL 94-V0 thermoplastic, tin-plated copper alloy
- • Terminal: 2.8mm width, fits Mini fuse holders
- • Certifications: SAE J553 / SAE J1171

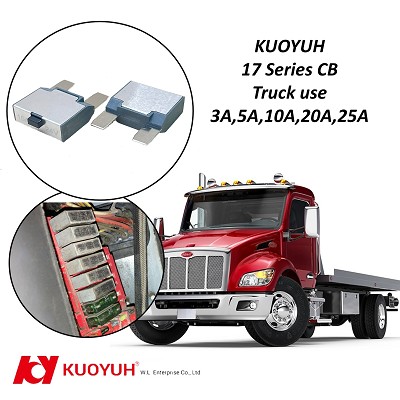

17 Series: Maxi Breaker
- • Current Range: 5A–60A
- • Voltage: 14VDC (auto reset) / 24VDC (manual reset)
- • Material: UL 94-V0 thermoplastic, tin-plated copper alloy
- • Terminal: 7.9mm width, fits Maxi fuse holders
- • Certifications: SAE J553
18 Series: ATC Breaker
- • Current Range: 5A–30A
- • Voltage: 14VDC (auto reset) / 24VDC (manual reset)
- • Material: UL 94-V0 thermoplastic, tin-plated copper alloy
- • Terminal: 5.2mm width, fits ATC fuse holders
- • Certifications: SAE J553

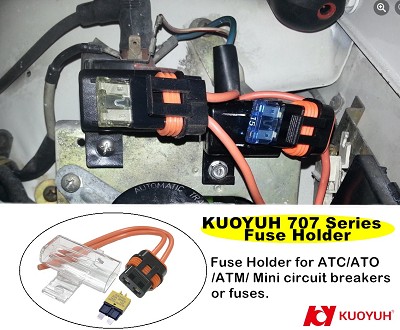

707 Series: Fuse Holder
- • Compatible with ATC/ATO/ATM/Mini breakers or fuses
- • Rated Current: 30A max
- • Wire Size: 12AWG / 14AWG
- • Color Options: Red/orange wires; black/transparent/orange housings
Why Every Truck Should Use Blade-Style Circuit Breakers?
- • Minimize Downtime: Reset breakers instantly and get back on the road.
- • Simplify Maintenance: No more carrying spare fuses—just reset and go.
- • Reduce Long-Term Costs: Fewer replacements mean major fleet savings.
- • Enhance Safety: Quick, reliable tripping prevents overheating and fire risks.
Top 5 FAQs About Circuit Breakers in Trucks
Q1:Why use both auto-reset and manual-reset breakers?
- • Auto-reset (Type I): Best for hard-to-reach areas (e.g., engine compartment).
- • Manual-reset (Type III): Best for accessible areas (e.g., passenger-side fuse box).
This prevents equipment damage and system overheating.
Q2:Why install a breaker box?
It centralizes power distribution and protection. Breakers trip instantly during faults, reducing fire risks and equipment damage.
Q3:How do I choose the right breaker?
- • Match the amperage rating to your load.
- • Confirm circuit voltage requirements.
- • Choose auto-reset or manual-reset based on location.
- • Ensure the size fits your installation.
Q4:How are breakers better than fuses for trucks?
It centralizes power distribution and protection. Breakers trip instantly during faults, reducing fire risks and equipment damage.
Q5:Why use both auto-reset and manual-reset breakers?
Yes. Inspect regularly for:
- • Frequent tripping
- • Overheating
- • Unusual odor or noise
These checks ensure long-term reliability.
Real-World Applications
- • Long-Haul Trucks & Fleets: Reduce downtime and keep deliveries on schedule.
- • Passenger Buses: Maintain uninterrupted lighting, HVAC, and doors.
- • Construction & Specialty Vehicles: Protect high-current equipment like lifts.
- • Passenger Cars & SUVs: Safeguard lighting, infotainment, and electronics.
Why KUOYUH Blade-Style Circuit Breakers Are the Smarter Choice?
In transportation, time is money, and reliability equals efficiency. Choosing KUOYUH blade-style circuit breakers is a smart decision for fleets that demand safety, cost savings, and dependable operation.
Free your vehicles from the limitations of fuses—and step into a new era of resettable, reliable, and efficient power protection.
Contact KUOYUH today to find the right blade-style circuit breaker solution for your trucks and fleets.
